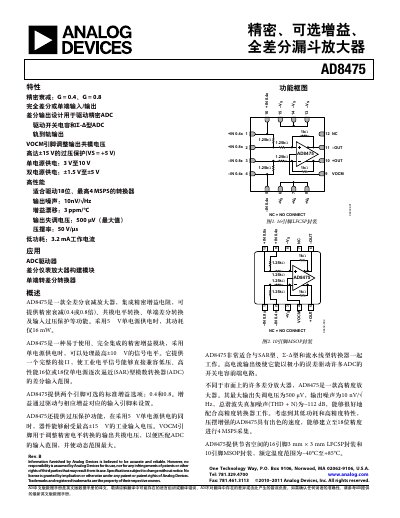

AD8475 Precision Selectable Gain Fully Differential Attenuating Amplifier Datasheet
The AD8475 is a fully differential attenuating amplifier featuring integrated precision gain resistors that provide selectable attenuation of 0.4 or 0.8. It is designed to drive precision ADCs, including successive-approximation (SAR) and sigma-delta types, by providing common-mode level shifting and input overvoltage protection. The device supports both single-supply (3 V to 10 V) and dual-supply (±1.5 V to ±5 V) operation.
Read onlineAnalog Devices AD8475 specifications
| Gain Error | 0.02 % |
|---|---|
| Maximum Output Offset | 500 µV |
| CMRR | 90 dB |
All Analog Devices AD8475 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What gain options are available for the AD8475?
The device provides two selectable gain options of 0.4 and 0.8.
From: AD8475 Precision Selectable Gain Fully Differential Attenuating Amplifier Datasheet
What is the maximum output offset voltage?
The maximum output offset voltage is 500 µV.
From: AD8475 Precision Selectable Gain Fully Differential Attenuating Amplifier Datasheet
What gain options does the AD8475 provide?
The AD8475 offers two selectable gain options: 0.4 V/V and 0.8 V/V.
What is the maximum output offset of the AD8475?
The maximum output offset is 500 µV.
