Start here

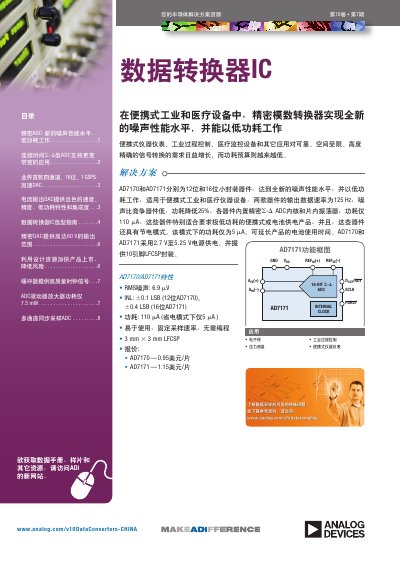

Analog Devices Data Converters Catalog (AD7170-AD7607)
This product catalog highlights several key data converter series from Analog Devices. It features the AD7170/AD7171 low-power sigma-delta ADCs suitable for portable instruments with noise ratios lower than competitors. The document also details the AD9262 continuous-time sigma-delta ADC, designed for high-speed applications like wireless communications and radar systems. This manual is written in Chinese.
Read onlineAnalog Devices AD7170 specifications
| Output Data Rate | 125 Hz |
|---|---|
| Power Supply Voltage | 2.7 V to 5.25 V |
| Power Current (Power-down) | 5 µA |
| Operating Temperature Range | -40°C to +105°C |
| Package | 10-lead LFCSP |
| Integral Nonlinearity | ±0.1 LSB |
| Offset Error | ±200 µV |
Source: Analog Devices AD7170 12-Bit Low Power Sigma-Delta ADC Datasheet
All Analog Devices AD7170 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output data rate for AD7170 and AD7171?
The output data rate for both devices is 125 Hz.
From: Analog Devices Data Converters Catalog (AD7170-AD7607)
How much power does an AD9262 consume in normal operation?
An AD9262 consumes 600 mW of power during normal operation.
From: Analog Devices Data Converters Catalog (AD7170-AD7607)
What is the power consumption in power-down mode?
In power-down mode, the device current consumption is as low as 5 µA.
From: Analog Devices AD7170 12-Bit Low Power Sigma-Delta ADC Datasheet
What is the output data rate of the AD7170?
The output data rate of the AD7170 is 125 Hz.
From: Analog Devices AD7170 12-Bit Low Power Sigma-Delta ADC Datasheet
What is the output data rate of the AD7170?
The AD7170 provides an output data rate of 125 Hz.
From: Analog Devices AD7170 12‑Bit Low Power Sigma‑Delta ADC Datasheet
What supply voltage range does the AD7170 support?
It operates from 2.7 V to 5.25 V.
From: Analog Devices AD7170 12‑Bit Low Power Sigma‑Delta ADC Datasheet
