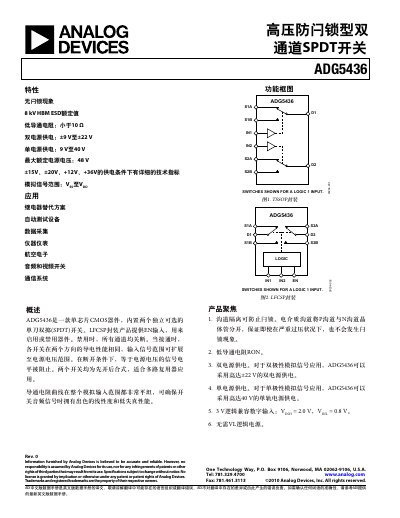

Analog Devices ADG5436 High Voltage Latch-Up Protected Dual Channel SPDT Switch Datasheet
The ADG5436 is a single-chip CMOS device containing two independent selectable Single-Pole Double-Throw (SPDT) switches. It features latch-up immunity up to 8 kV HBM ESD rating, making it suitable for relay replacement in automatic test equipment and data acquisition systems.
The device supports both dual power supply operation (±9 V to ±22 V) and single power supply operation (9 V to 40 V), with a maximum rated power supply voltage of 48 V. It offers low on-resistance, flat resistance across the analog input range, and high channel isolation.
Analog Devices ADG5436 specifications
| On‑Resistance (Ron) typical | 9 Ω |
|---|---|
| Dual‑supply voltage range | +9 V to +22 V |
| Input low voltage (logic‑low) | 0.8 V max |
| Break‑Before‑Make time delay | 55 ns typical |
| ESD rating | 8 kV HBM |
All Analog Devices ADG5436 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum single-supply voltage supported by the ADG5436?
The device supports a single-supply voltage of up to 40 V.
From: Analog Devices ADG5436 High Voltage Latch-Up Protected Dual Channel SPDT Switch Datasheet
What is the maximum dual-supply voltage supported by the ADG5436?
The device supports a dual-supply voltage of up to ±22 V.
From: Analog Devices ADG5436 High Voltage Latch-Up Protected Dual Channel SPDT Switch Datasheet
What is the maximum dual‑supply voltage for the ADG5436?
The device can operate with dual supplies from +9 V up to +22 V.
What is the typical on‑resistance of the ADG5436?
The typical on‑resistance is about 9 Ω.
