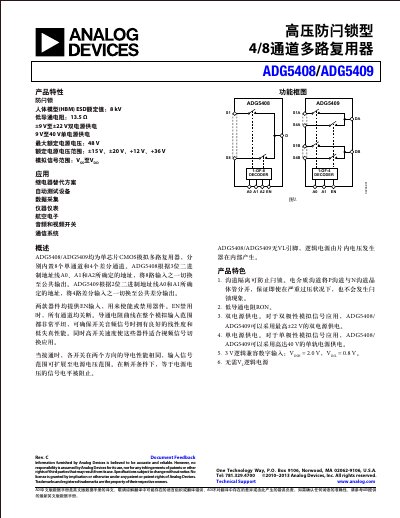

Analog Devices ADG65408/ADG5409 Analog Multiplexer Datasheet
The document describes the Analog Devices ADG65408 and ADG5409, which are single-chip CMOS analog multiplexers. The ADG65408 features eight single-pole switches controlled by a 3-bit binary address, while the ADG5409 includes four differential channels controlled by a 2-bit binary address. Both devices offer low on-resistance and high switching speeds suitable for audio, video, and data acquisition applications.
The datasheet provides comprehensive technical specifications including on-resistance, leakage current, conversion time, and bandwidth under different power supply configurations: ±15V dual supply, ±20V dual supply, +12V single supply, and +36V single supply. It also lists application areas such as relay replacement, automatic test equipment, and instrumentation. This manual is written in Chinese.
Analog Devices ADG5409 specifications
| ESD Rating (HBM) | 8 kV |
|---|---|
| Supply Voltage Range (Dual) | +9V to +22V |
| Supply Voltage Range (Single) | +9V to 40V |
| Maximum Rated Supply Voltage | 48V |
| Channel Count (ADG65408) | 8 Single-Channel |
| Channel Count (ADG5409) | 4 Differential Channels |
| -3 dB Bandwidth (ADG65408, ±15V) | 50 MHz |
| -3 dB Bandwidth (ADG5409, ±15V) | 87 MHz |
Source: Analog Devices ADG65408/ADG5409 Analog Multiplexer Datasheet
All Analog Devices ADG5409 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Do these devices require a separate logic power supply?
No, the ADG65408/ADG5409 do not have a VDD pin; logic power is generated internally by an on-chip voltage generator.
From: Analog Devices ADG65408/ADG5409 Analog Multiplexer Datasheet
What is the maximum rated supply voltage for these multiplexers?
The maximum rated supply voltage is 48V.
From: Analog Devices ADG65408/ADG5409 Analog Multiplexer Datasheet
What is the ESD rating of the ADG5408/ADG5409?
The devices have an 8 kV human body model (HBM) ESD rating.
What supply voltage options are supported?
They operate from +9 V to +22 V dual‑supply, 9 V to 40 V single‑supply, with a maximum rating of 48 V.
