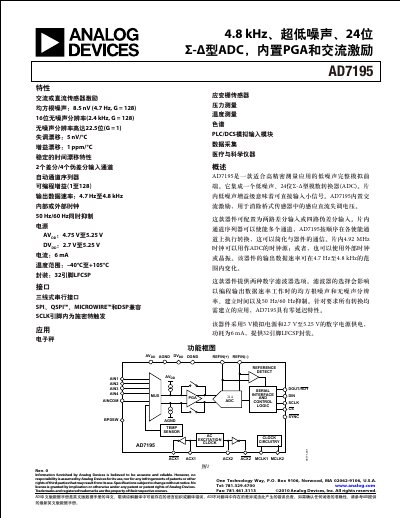

AD7195 Low Noise 24-Bit Sigma-Delta ADC Datasheet
The AD7195 is a low noise, 24-bit Sigma-Delta analog-to-digital converter (ADC) designed for high-precision measurement applications. It features an integrated low noise gain stage that allows small signals to be applied directly to the input. The device includes built-in AC excitation to eliminate induced DC offset voltages in bridge sensors. It supports two digital filter options, multiple input channel configurations, and programmable gain, making it suitable for applications such as electronic scales, pressure measurement, temperature measurement, chromatography, and medical instruments. This manual is written in Chinese.
Read onlineAnalog Devices AD7195 specifications
| Root Mean Square Noise | 8.5 nV |
|---|---|
| No Noise Resolution | 16-bit |
| Supply Voltage AVDD | 4.75 V to 5.25 V |
| Supply Voltage DVDD | 2.7 V to 5.25 V |
| Operating Temperature Range | -40°C to +105°C |
| Package | 32-lead LFCSP |
| Output Data Rate | 4.7 Hz to 4.8 kHz |
All Analog Devices AD7195 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD7195?
The AD7195 is a 24-bit Sigma-Delta ADC.
What is the typical root mean square noise?
The typical root mean square noise is 8.5 nV at 4.7 Hz with a gain of 128.
What supply voltages does the AD7195 require?
The analog supply (AVDD) must be 4.75 V to 5.25 V and the digital supply (DVDD) must be 2.7 V to 5.25 V.
From: Analog Devices AD7195 24‑Bit Sigma‑Delta ADC Datasheet
How many input channels are available on the AD7195?
It provides two differential input channels or four pseudo‑differential input channels.
From: Analog Devices AD7195 24‑Bit Sigma‑Delta ADC Datasheet
