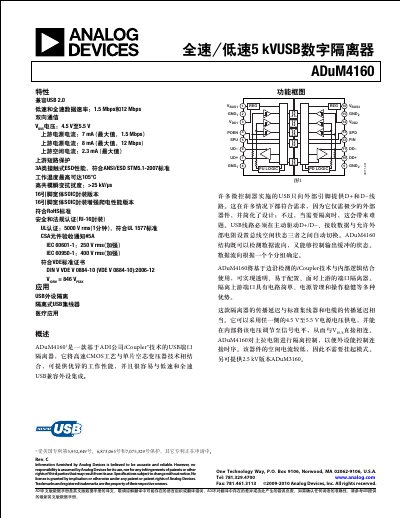

Analog Devices ADuM4160 USB Digital Isolator Datasheet
The ADuM4160 is a USB port isolator based on Analog Devices' iCoupler technology, combining high-speed CMOS processes with monolithic air-core transformer technology. It supports both full-speed (12 Mbps) and low-speed (1.5 Mbps) USB data rates and is designed for transparent, easy-to-configure port isolation. This manual is written in Chinese.
Read onlineAnalog Devices ADuM4160 specifications
| USB Data Rate | 1.5 Mbps and 12 Mbps |
|---|---|
| V BUS Voltage | 4.5 V to 5.5 V |
| Upstream Supply Current (Max, 1.5 Mbps) | 7 mA |
| Upstream Supply Current (Max, 12 Mbps) | 8 mA |
| Upstream Idle Current | 2.3 mA |
| ESD Performance | 3A Class Contact Discharge |
| Operating Temperature | -40°C to +105°C |
| Package Type | 16-lead Wide SOIC |
| Isolation Voltage (UL) | 5000 V rms |
