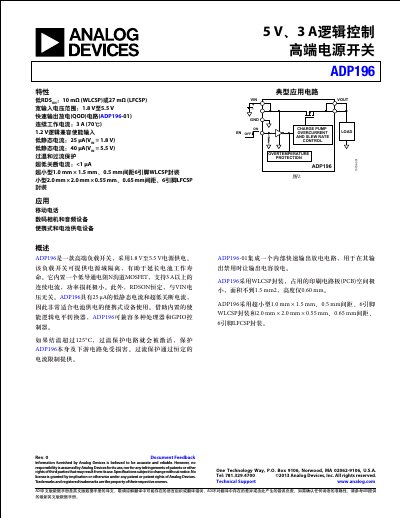

Analog Devices ADP196 High-End Power Switch Datasheet
The ADP196 is a high-end load switch designed for portable and battery-powered applications such as mobile phones, digital cameras, and audio equipment. It features a low on-resistance N-channel MOSFET supporting up to 3 A of continuous current and includes built-in overcurrent and overtemperature protection. The device operates with a wide input voltage range of 1.8 V to 5.5 V and offers low static current consumption, making it ideal for extending battery life. This manual is written in Chinese.
Read onlineAnalog Devices ADP196 specifications
| Input Voltage Range | 1.8 V to 5.5 V |
|---|---|
| Continuous Operating Current | 3 A |
| On-Resistance (WLCSP) | 10 mΩ |
| Static Current (VIN = 1.8 V) | 25 µA |
| Shutdown Current | <1 µA |
| Overtemperature Protection Threshold | 125°C |
| Package Type | 6-pin WLCSP or LFCSP |
Source: Analog Devices ADP196 High-End Power Switch Datasheet
