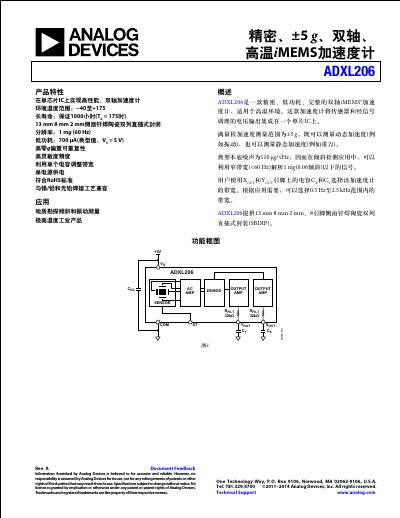

Analog Devices ADXL206 Precision Dual-Axis High-Temperature Accelerometer Datasheet
The document describes the ADXL206, a single-chip integrated MEMS accelerometer featuring a ±5 g measurement range and operation from -40°C to +175°C. It integrates a polysilicon surface micromachined sensor with signal conditioning circuitry to provide an analog voltage output proportional to acceleration.
Read onlineAnalog Devices ADXL206 specifications
| Measurement Range | ±5 g |
|---|---|
| Operating Temperature Range | -40 to +175°C |
| Package Type | 8-pin SBDIP |
| Resolution | 1 mg (60 Hz) |
| Supply Current | 700 µA typical |
| Noise Density | 110 µg/√Hz rms |
Source: Analog Devices ADXL206 Precision Dual-Axis High-Temperature Accelerometer Datasheet
All Analog Devices ADXL206 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the ADXL206?
The device operates from -40°C to +175°C.
From: Analog Devices ADXL206 Precision Dual-Axis High-Temperature Accelerometer Datasheet
What is the measurement range of the ADXL206?
The accelerometer has a full-scale measurement range of ±5 g.
From: Analog Devices ADXL206 Precision Dual-Axis High-Temperature Accelerometer Datasheet
What is the full‑scale measurement range of the ADXL206?
The ADXL206 measures acceleration up to ±5 g.
How is the bandwidth of the ADXL206 selected?
Bandwidth is set by connecting external capacitors Cx and Cy to the Xout and Yout pins, allowing selection from 0.5 Hz to 2.5 kHz.
