Key facts
- Brand
- Analog Devices
- Model
- ADL5562
- Category
- amplifier
- Industry
- Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2022-10-18
Start here

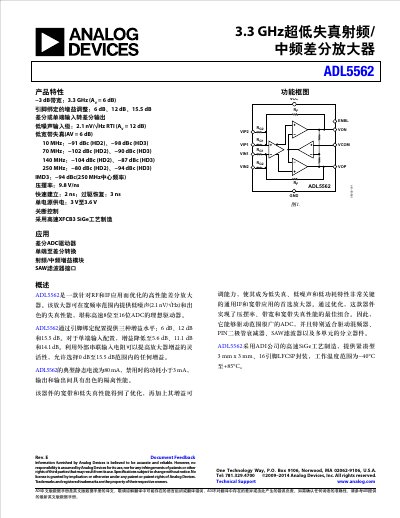

Analog Devices ADL5562 RF/IF Differential Amplifier Datasheet
The ADL5562 is a high-performance differential amplifier optimized for RF and IF applications, featuring a 3.3 GHz bandwidth and ultra-low distortion. It is designed to drive differential ADCs and serves as an ideal driver for mixers, PIN diode attenuators, and SAW filters. The device utilizes Analog Devices' high-speed SiGe process to achieve a combination of high bandwidth, fast slew rate, and low broadband distortion.
Read onlineAnalog Devices ADL5562 specifications
| −3 dB Bandwidth (AV = 6 dB) | 3.3 GHz |
|---|---|
| Gain Settings | 6 dB, 12 dB, 15.5 dB |
| Input Noise Voltage Density (AV = 12 dB) | 2.1 nV/√Hz |
| Slew Rate | 9.8 V/ns |
| Supply Voltage | 3 V to 3.6 V |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 3 mm x 3 mm, 16-pin LFCSP |
Source: Analog Devices ADL5562 RF/IF Differential Amplifier Datasheet
All Analog Devices ADL5562 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum bandwidth of the ADL5562?
The device offers a −3 dB bandwidth of up to 3.9 GHz depending on the gain setting.
From: Analog Devices ADL5562 RF/IF Differential Amplifier Datasheet
Is the ADL5562 suitable for driving ADCs?
Yes, it is optimized as an ideal driver for high-speed 8-bit to 16-bit ADCs.
From: Analog Devices ADL5562 RF/IF Differential Amplifier Datasheet
What is the total insertion loss of the filter network and other components?
The total insertion loss due to the filter network and other components is only 1.8 dB.
From: Analog Devices CN-0227 Circuit Note for AD9467/ADL5562 Receiver Front End
What is the bandwidth of the overall circuit?
The overall circuit has a bandwidth of 152 MHz.
From: Analog Devices CN-0227 Circuit Note for AD9467/ADL5562 Receiver Front End
How much current does the ADL5562 draw in normal operation?
Typical quiescent current is about 80 mA, dropping to less than 3 mA when disabled.
From: Analog Devices ADL5562 RF/IF Differential Amplifier Datasheet
What is the input‑referred noise performance?
The input noise density is 2.1 nV/√Hz at the typical gain setting.
From: Analog Devices ADL5562 RF/IF Differential Amplifier Datasheet
