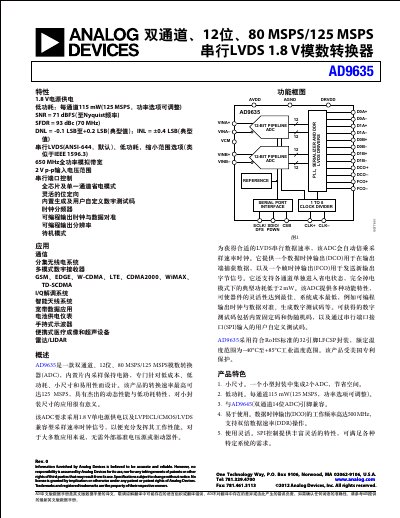

Analog Devices AD9635 Dual-Channel 12-Bit Pipeline ADC Datasheet
The AD9635 is a dual-channel, 12-bit, 80 MSPS/125 MSPS serial LVDS 1.8 V analog-to-digital converter (ADC) featuring an on-chip sample and hold circuit. It is designed for low cost, low power consumption, small size, and ease of use. The device supports conversion rates up to 125 MSPS with excellent dynamic performance.
The ADC operates from a single 1.8 V supply and accepts LVPECL/CMOS/LVDS compatible sampling rate clock signals. It includes features such as programmable output clock and data alignment, built-in digital test code generation, and flexible power-down modes for each channel or the entire chip. This manual is written in Chinese.
Analog Devices AD9635 specifications
| Sampling Rate (Max) | 80 MSPS / 125 MSPS |
|---|---|
| Power Consumption (Per Channel @ 125 MSPS) | 115 mW |
| Signal-to-Noise Ratio (SNR) | 71 dBFS @ 9.7 MHz |
| Spurious-Free Dynamic Range (SFDR) | 93 dBc @ 9.7 MHz |
| Differential Nonlinearity (DNL) | -0.1 LSB to +0.2 LSB (Typical @ 25°C) |
| Integral Nonlinearity (INL) | ±0.4 LSB (Typical @ 25°C) |
| Analog Bandwidth | 650 MHz |
Source: Analog Devices AD9635 Dual-Channel 12-Bit Pipeline ADC Datasheet
