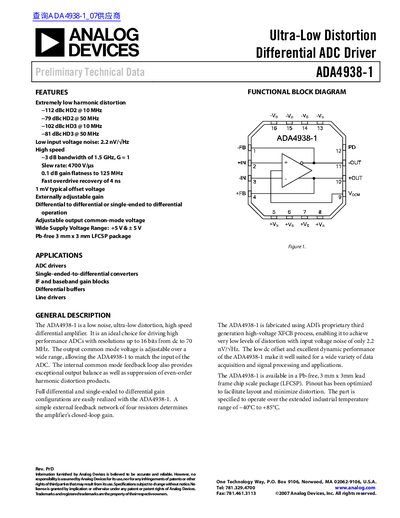

Analog Devices ADA4938-1 Ultra-Low Distortion Differential ADC Driver Datasheet
The ADA4938-1 is a low noise, ultra-low distortion, high speed differential amplifier fabricated using Analog Devices' proprietary third generation high-voltage XFCB process. It is an ideal choice for driving high performance ADCs with resolutions up to 16 bits from dc to 70 MHz. The device features extremely low harmonic distortion, with -112 dBc HD2 @ 10 MHz and -102 dBc HD3 @ 10 MHz, and a low input voltage noise of 2.2 nV/VHz.
Read onlineAnalog Devices ADA4938-1 specifications
| Second Harmonic Distortion (HD2) @ 10 MHz | -112 dBc |
|---|---|
| Third Harmonic Distortion (HD3) @ 10 MHz | -102 dBc |
| Input Voltage Noise (RTI) | 2.2 nV/VHz |
| 3 dB Bandwidth (G=1) | 1.5 GHz |
| Slew Rate | 4700 V/ps |
| Offset Voltage | 1 mV |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | Pb-free 3 mm x 3 mm LFCSP |
Source: Analog Devices ADA4938-1 Ultra-Low Distortion Differential ADC Driver Datasheet
All Analog Devices ADA4938-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
