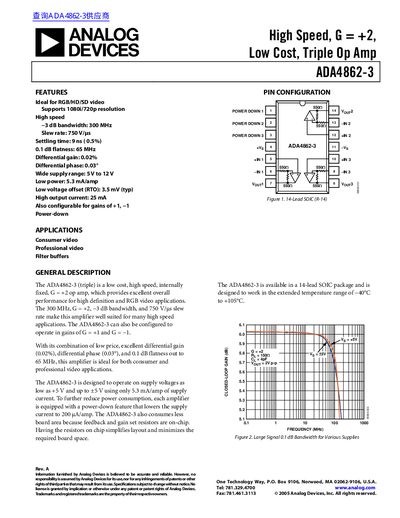

Analog Devices ADA4862-3 High Speed Triple Op Amp Datasheet
The document describes the ADA4862-3 as a low cost, high speed, internally fixed G = +2 op amp designed for excellent performance in high definition and RGB video applications. Key features include a 300 MHz bandwidth, 750 V/µs slew rate, and support for resolutions up to 1080i/720p.
Read onlineAnalog Devices ADA4862-3 specifications
| Slew Rate (Rising Edge) | 750 V/us |
|---|---|
| Settling Time to 0.5% | 9 ns |
| Differential Gain | 0.02 % |
| Operating Supply Range | 5 V to 12 V |
| Quiescent Current per Amp | 5.3 mA/amp |
Source: Analog Devices ADA4862-3 High Speed Triple Op Amp Datasheet
All Analog Devices ADA4862-3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application for this op amp?
It is ideal for RGB and HD/SD video applications.
From: Analog Devices ADA4862-3 High Speed Triple Op Amp Datasheet
Can this amplifier be configured for other gains?
Yes, it can also be configured to operate in gains of +1 and -1.
From: Analog Devices ADA4862-3 High Speed Triple Op Amp Datasheet
What is the typical quiescent current of the ADA4862-3 when enabled?
The device draws about 14 mA per amplifier in its enabled state.
Can the ADA4862-3 operate from a single 5 V supply?
Yes, its operating supply range is 5 V to 12 V, so a 5 V single supply is supported.
What is the supply voltage range for the ADA4862-3?
The device operates from 5 V up to 12 V.
What is the typical quiescent current per amplifier?
Each amplifier draws about 5.3 mA when enabled.
