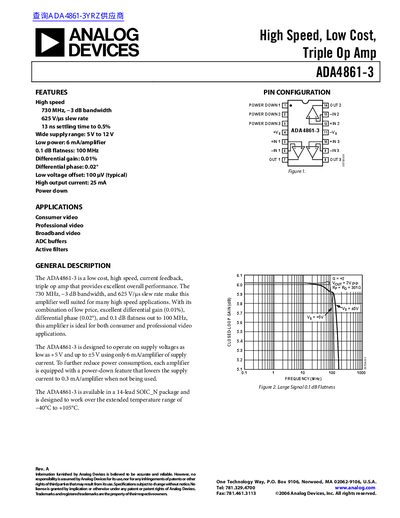

Analog Devices ADA4861-3 High Speed Triple Op Amp Datasheet
The document describes the ADA4861-3 as a low cost, high speed, current feedback, triple op amp designed for consumer and professional video applications. Key features include a 730 MHz bandwidth, 625 V/us slew rate, and operation on supply voltages from 5 V to 12 V.
Read onlineAnalog Devices ADA4861-3 specifications
| Slew Rate (Rising Edge) | 590 V/us |
|---|---|
| Settling Time to 0.5% | 13 ns |
| Supply Voltage Range | 5 V to 12 V |
| Quiescent Current/Amplifier (Enabled) | 6 mA |
| Operating Temperature Range | -40°C to +105°C |
Source: Analog Devices ADA4861-3 High Speed Triple Op Amp Datasheet
All Analog Devices ADA4861-3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the ADA4861-3?
The device can operate with a supply voltage of up to 12 V.
From: Analog Devices ADA4861-3 High Speed Triple Op Amp Datasheet
What is the maximum junction temperature for the device?
The maximum junction temperature is 150°C.
From: Analog Devices ADA4861-3 High Speed Triple Op Amp Datasheet
What is the maximum operating temperature range for the ADA4861-3?
The device is designed to operate over the extended temperature range of -40°C to +105°C.
From: Analog Devices ADA4861-3 High Speed Triple Op Amp Datasheet
What is the maximum supply voltage for the ADA4861-3?
The operating supply voltage range is 5 V to 12 V.
From: Analog Devices ADA4861-3 High Speed Triple Op Amp Datasheet
What is the supply voltage range for the ADA4861-3?
The device operates from 5 V up to 12 V.
How much current does each amplifier draw when enabled?
Each amplifier consumes about 6 mA when enabled.
