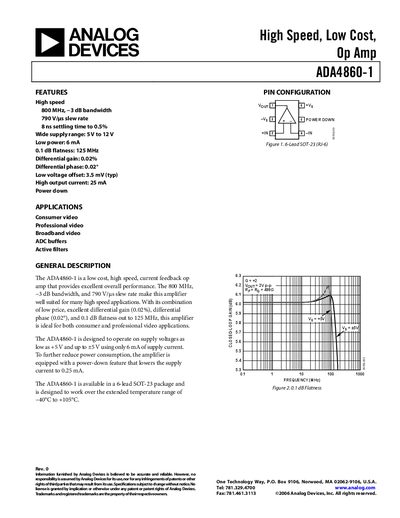

Analog Devices ADA4860-1 Op Amp Datasheet
The ADA4860-1 is a current‑feedback operational amplifier designed for high‑speed video and broadband applications. It offers an 800 MHz –3 dB bandwidth, 790 V/µs slew rate, and a wide supply range of 5 V to 12 V while consuming only 6 mA of quiescent current.
The device is supplied in a 6‑lead SOT‑23 package, operates from –40 °C to +105 °C, and includes a power‑down pin to reduce standby current to 0.25 mA. Detailed specifications, absolute maximum ratings, and typical performance curves are provided.
Analog Devices ADA4860-1 specifications
| -3 dB Bandwidth | 800 MHz |
|---|---|
| Slew Rate | 790 V/µs |
| Supply Voltage Range | 5 V to 12 V |
| Quiescent Current (Enabled) | 6 mA |
| Output Current | 25 mA |
All Analog Devices ADA4860-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
