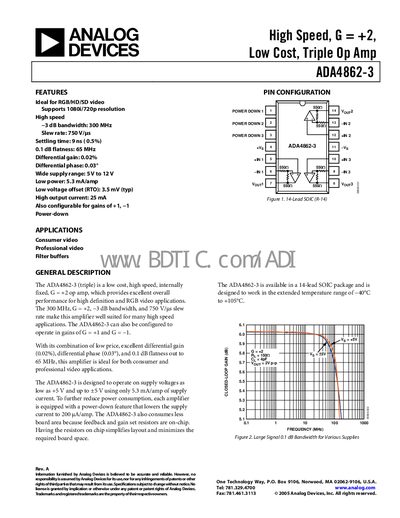

ADA4862-3 is a high-performance, low-cost, high-speed, internally fixed gain of +2 triple op amp, mainly used in consumer video and professional video applications.
The ADA4862-3 triple op‑amp is designed for consumer and professional video applications, offering high speed performance with a 300 MHz –3 dB bandwidth and 750 V/µs slew rate. It operates from a single supply of 5 V to 12 V and includes a power‑down feature that reduces quiescent current to 200 µA.
Key specifications include a low offset voltage of 3.5 mV, differential gain of 0.02 %, and a high output current of 25 mA. The device is supplied in a 14‑lead SOIC (R‑14) package and is rated for an extended temperature range of –40 °C to +105 °C.
| -3 dB Bandwidth | 300 MHz |
|---|---|
| Slew Rate | 750 V/µs |
| Supply Voltage Range | 5 V to 12 V |
| Quiescent Current | 5.3 mA per amp |
| Output Current | 25 mA |
| Differential Gain | 0.02 % |
The device operates from 5 V up to 12 V.
Each amplifier draws about 5.3 mA when enabled.
It is offered in a 14‑lead SOIC (R‑14) package.
The –3 dB bandwidth is 300 MHz.
