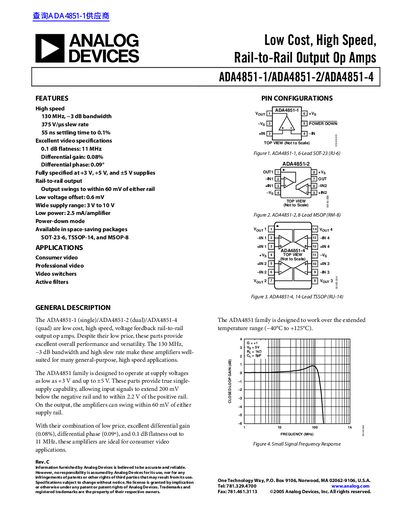

Analog Devices ADA4851-1/2/4 Low Cost High Speed Rail-to-Rail Output Op Amps Datasheet
The document provides technical data for the ADA4851 family of operational amplifiers, which are designed as low-cost, high-speed, voltage feedback devices with rail-to-rail output capabilities. These amplifiers are suitable for general-purpose high-speed applications, including consumer and professional video systems, active filters, and video switchers. They operate over a wide supply voltage range from +3 V to ±5 V and feature a high slew rate of 375 V/μs and a −3 dB bandwidth of 130 MHz.
Read onlineAnalog Devices ADA4851-1 specifications
| −3 dB Bandwidth | 130 MHz |
|---|---|
| Slew Rate | 375 V/μs |
| Settling Time to 0.1% | 55 ns |
| Input Offset Voltage | 0.6 mV |
| Input Bias Current | 2.3 μA |
| Operating Supply Range | 2.7 V to 12 V |
| Quiescent Current per Amplifier | 2.5 mA |
| Short-Circuit Current | 90/70 mA |
Source: Analog Devices ADA4851-1/2/4 Low Cost High Speed Rail-to-Rail Output Op Amps Datasheet
All Analog Devices ADA4851-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices ADA4851-1/2/4 Low Cost High Speed Rail-to-Rail Output Op Amps Datasheet 20 p
- ANALOG DEVICES ADA4851-1/ADA4851-2/ADA4851-4 handbook(2) 17 p
- Analog Devices ADA4851-1/ADA4851-2/ADA4851-4 Datasheet 21 p
- Analog Devices ADA4851-1/ADA4851-2/ADA4851-4 Datasheet 20 p
- Analog Devices ADA4851-1/ADA4851-2/ADA4851-4 Datasheet 20 p
Questions answered in these manuals
What are the applications for the ADA4851 family?
The ADA4851 family is ideal for consumer video, professional video, video switchers, and active filters.
From: Analog Devices ADA4851-1/2/4 Low Cost High Speed Rail-to-Rail Output Op Amps Datasheet
What is the minimum supply voltage for the ADA4851?
The amplifiers are designed to operate at supply voltages as low as +3 V and up to ±5 V.
From: Analog Devices ADA4851-1/2/4 Low Cost High Speed Rail-to-Rail Output Op Amps Datasheet
What is the maximum power-down current?
The maximum power-down current is 150 nA per amplifier.
From: ANALOG DEVICES ADA4851-1/ADA4851-2/ADA4851-4 handbook(2)
What is the operating supply voltage range?
The device operates with a single supply from 2.7 V to 6 V.
From: ANALOG DEVICES ADA4851-1/ADA4851-2/ADA4851-4 handbook(2)
What are the applications for the ADA4851 family?
The ADA4851 family is ideal for consumer video, professional video, video switchers, and active filters.
From: Analog Devices ADA4851-1/ADA4851-2/ADA4851-4 Datasheet
What is the output voltage swing capability?
The amplifiers can swing within 60 mV of either supply rail.
From: Analog Devices ADA4851-1/ADA4851-2/ADA4851-4 Datasheet
