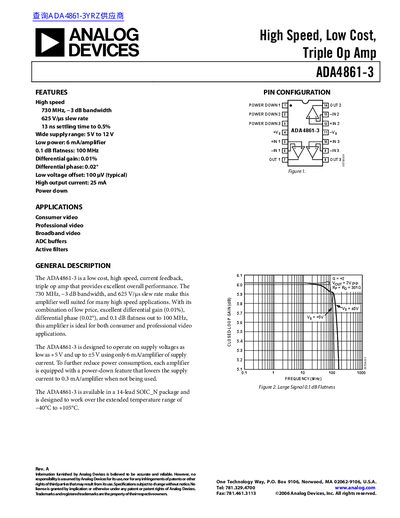

This document describes the ADA4861-3 product, including its features and characteristics, such as high speed, low cost, and triple op amp
The ADA4861-3 is a low cost, high speed, current feedback, triple op amp designed for consumer and professional video applications. It features a 730 MHz bandwidth and operates on supply voltages as low as +5 V with only 6 mA of supply current per amplifier.
| -3 dB Bandwidth (Vo=2V p-p) | 145 MHz |
|---|---|
| Slew Rate (Rising Edge) | 625 V/us |
| Settling Time to 0.5% | 13 ns |
| Supply Voltage Range | 5 V to 12 V |
| Quiescent Current per Amplifier | 6 mA |
| Operating Temperature Range | -40°C to +105°C |
The device is designed to operate over the extended temperature range of -40°C to +105°C.
The operating supply voltage range is 5 V to 12 V.
The supply current drops to 0.3 mA/amplifier when the power-down feature is used.
