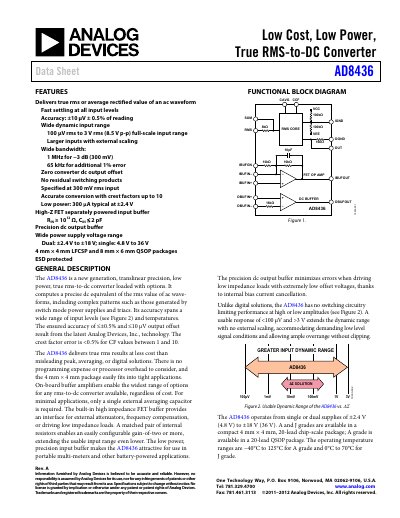

ANALOG DEVICES AD8436: Low Cost Low Power True RMS-to-DC Converter Data Sheet (Rev A 2012-07-18-)
The AD8436 is a translinear precision, low-power true RMS-to-DC converter designed to compute the precise DC equivalent of the RMS value of AC waveforms. It is suitable for complex patterns such as those generated by switch-mode power supplies and triacs. The device features a wide dynamic input range from 100 pV RMS to 3 V RMS and delivers true RMS results at a lower cost than digital or peak-averaging solutions.
Read onlineAnalog Devices AD843 specifications
| Accuracy | +10 pV + 0.5% of reading |
|---|---|
| Full-scale input range | 100 pV rms to 3 Vrms |
| 3 dB Bandwidth | 1 MHz |
| Supply Current (No input) | 325 pA typical |
| Operating Temperature Range (A grade) | -40°C to +125°C |
Source: ANALOG DEVICES AD8436: Low Cost Low Power True RMS-to-DC Converter Data Sheet (Rev A 2012-07-18-)
All Analog Devices AD843 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the full-scale input range of the AD8436?
The device supports a full-scale input range from 100 pV rms to 3 Vrms.
From: ANALOG DEVICES AD8436: Low Cost Low Power True RMS-to-DC Converter Data Sheet (Rev A 2012-07-18-)
What are the available supply voltage ranges?
The converter operates from dual supplies of +2.4 V to +18 V or single supplies of 4.8 V to 36 V.
From: ANALOG DEVICES AD8436: Low Cost Low Power True RMS-to-DC Converter Data Sheet (Rev A 2012-07-18-)
What supply voltage options are available for the AD8436?
The AD8436 can operate from dual supplies of +2.4 V to +18 V or from a single supply of +4.8 V to 36 V.
From: Analog Devices AD8436 True RMS-to-DC Converter Datasheet
What is the typical supply current of the AD8436?
Typical supply current with no input is 325 pA.
From: Analog Devices AD8436 True RMS-to-DC Converter Datasheet
What is the unity‑gain bandwidth of the AD843?
The AD843 has a unity‑gain bandwidth of 34 MHz.
Does the AD843 require external compensation?
No, the AD843 does not require external compensation at closed‑loop gains of 1 or greater.
