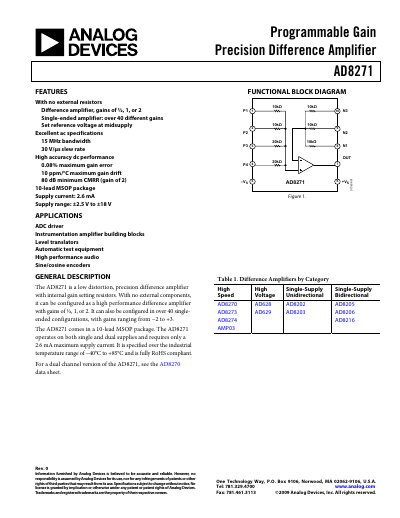

Analog Devices AD8271 Programmable Gain Precision Difference Amplifier Datasheet
The AD8271 is a low distortion, precision difference amplifier manufactured by Analog Devices. It features internal gain-setting resistors, allowing it to be configured as a difference amplifier with gains of 1/2, 1, or 2 without external components. Additionally, it supports over 40 single-ended configurations with gains ranging from -2 to +3.
Read onlineAnalog Devices AD827 specifications
| Bandwidth (G=1) | 15 MHz |
|---|---|
| Slew Rate | 30 V/μs |
| Gain Error (G=1) | 0.08% max |
| Gain Drift | 10 ppm/°C max |
| CMRR (G=2) | 80 dB min |
| Supply Current | 2.6 mA max |
| Supply Range | ±2.5 V to ±18 V |
| Package | 10-lead MSOP |
| Operating Temperature | -40°C to +85°C |
Source: Analog Devices AD8271 Programmable Gain Precision Difference Amplifier Datasheet
