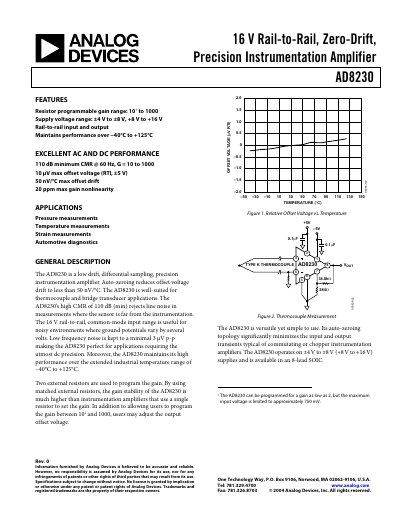

Analog Devices AD8230 Precision Instrumentation Amplifier Datasheet
The document describes the AD8230, a precision instrumentation amplifier featuring rail-to-rail input and output, high common-mode rejection ratio (CMRR), and excellent AC/DC performance. It is designed for use with thermocouples and bridge sensors, supporting a wide power supply range from ±4 V to ±8 V while maintaining high performance across an extended industrial temperature range of −40°C to +125°C. This manual is written in Chinese.
Read onlineAnalog Devices AD8230 specifications
| Offset Voltage (RTI) | 10 µV max |
|---|---|
| Offset Drift | 50 nV/°C max |
| Gain Range | 2 to 1000 V/V |
| Power Supply Range (Dual) | ±4 V to ±8 V |
| Operating Temperature Range | -40°C to +125°C |
Source: Analog Devices AD8230 Precision Instrumentation Amplifier Datasheet
All Analog Devices AD8230 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum offset voltage of the AD8230?
The maximum RTI offset voltage is 10 µV when V+IN = V−IN = 0 V.
From: Analog Devices AD8230 Precision Instrumentation Amplifier Datasheet
What is the gain range of the AD8230?
The programmable gain range is from 2 to 1000.
From: Analog Devices AD8230 Precision Instrumentation Amplifier Datasheet
What gain range does the AD8230 support?
The AD8230 can be programmed for a gain from 101 to 1000 V/V.
From: Analog Devices AD8230 Instrumentation Amplifier Datasheet
What is the maximum offset drift of the AD8230?
The offset drift is limited to 50 nV per degree Celsius.
From: Analog Devices AD8230 Instrumentation Amplifier Datasheet
What is the programmable gain range of the AD8230?
The AD8230 can be programmed for a gain from 10 to 1000.
From: Analog Devices AD8230 Instrumentation Amplifier Datasheet
What is the minimum common‑mode rejection ratio of the AD8230?
The device provides at least 110 dB CMRR at 60 Hz.
From: Analog Devices AD8230 Instrumentation Amplifier Datasheet
