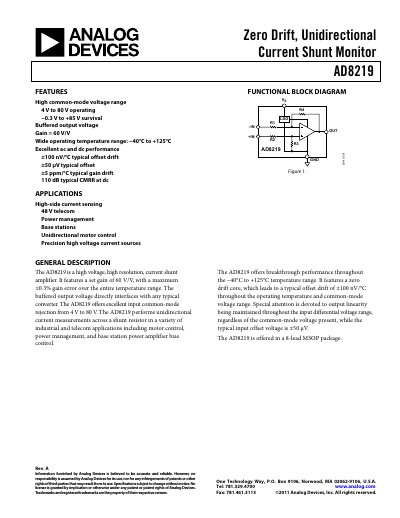

Analog Devices AD8219 Current Shunt Amplifier Datasheet
The AD8219 is a high‑voltage, high‑resolution current shunt amplifier featuring a fixed gain of 60 V/V, a wide common‑mode voltage range of 4 V to 80 V, and operation across –40 °C to +125 °C. It includes a zero‑drift core that provides typical offset drift of ±100 nV/°C and a buffered output that can directly interface with converters.
Typical applications include high‑side current sensing for telecom (48 V), power‑management circuits, base‑station bias control, and motor‑control systems. The device is supplied in an 8‑lead MSOP package and offers robust ESD protection, wide supply range (4 V‑80 V), and low quiescent current.
Analog Devices AD8219 specifications
| Gain | 60 V/V |
|---|---|
| Voltage Offset | ±200 μV |
| Offset Drift | ±100 nV/°C |
| Input Bias Current | 130 μA (typ) |
| Common‑Mode Input Voltage Range | 4 V to 80 V |
| Output Voltage Range (Low) | 0.01 V |
| Power‑Supply Operating Range | 4 V to 80 V |
| Quiescent Current (over temperature) | 800 μA |
Source: Analog Devices AD8219 Current Shunt Amplifier Datasheet
All Analog Devices AD8219 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the fixed gain of the AD8219?
The AD8219 has a fixed gain of 60 V/V.
From: Analog Devices AD8219 Current Shunt Amplifier Datasheet
What common‑mode voltage range does the AD8219 support?
It supports a common‑mode voltage range from 4 V to 80 V.
From: Analog Devices AD8219 Current Shunt Amplifier Datasheet
What is the fixed gain of the AD8219?
The AD8219 has a fixed gain of 60 V/V.
What input common‑mode voltage range does the AD8219 support?
It supports an input common‑mode voltage range from 4 V to 80 V.
