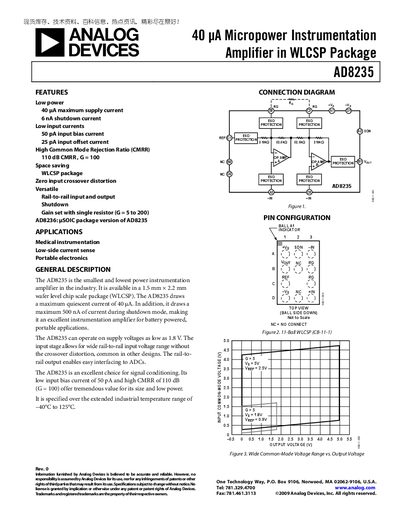

Analog Devices AD8235 Instrumentation Amplifier Datasheet
The AD8235 is a 40 pA micropower instrumentation amplifier offered in an 11‑ball wafer‑level chip‑scale package (WLCSP). It operates from 1.8 V to 5.5 V and draws as little as 30 µA quiescent current, making it suitable for portable and battery‑powered medical and low‑side current‑sense applications.
Key features include a low input bias current of 50 pA, a typical CMRR of 110 dB at gain 100, rail‑to‑rail input and output, and a shutdown pin that reduces current to 500 nA. The device supports gain settings from 5 to 200 via a single external resistor and provides a short‑circuit limit of 55 mA.
Analog Devices AD8235 specifications
| Supply Voltage Range | 1.8 V to 5.5 V |
|---|---|
| Quiescent Current | 30 µA typical, 40 µA max |
| Input Bias Current | 50 pA |
| Common‑Mode Rejection Ratio (CMRR) at G=100 | 110 dB |
| Gain Range | 5 to 200 |
| Short‑Circuit Limit | 55 mA |
| Operating Temperature Range | -40 °C to +125 °C |
Source: Analog Devices AD8235 Instrumentation Amplifier Datasheet
All Analog Devices AD8235 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the AD8235 support?
The AD8235 operates from 1.8 V up to 5.5 V.
From: Analog Devices AD8235 Instrumentation Amplifier Datasheet
How much quiescent current does the AD8235 draw?
Typical quiescent current is 30 µA, with a maximum of 40 µA.
From: Analog Devices AD8235 Instrumentation Amplifier Datasheet
What is the maximum supply voltage for the AD8235?
The absolute maximum supply voltage is 6 V.
From: Analog Devices AD8235 Instrumentation Amplifier Datasheet
How low can the shutdown current be?
The shutdown current can be as low as 6 nA, with a maximum of 500 nA.
From: Analog Devices AD8235 Instrumentation Amplifier Datasheet
