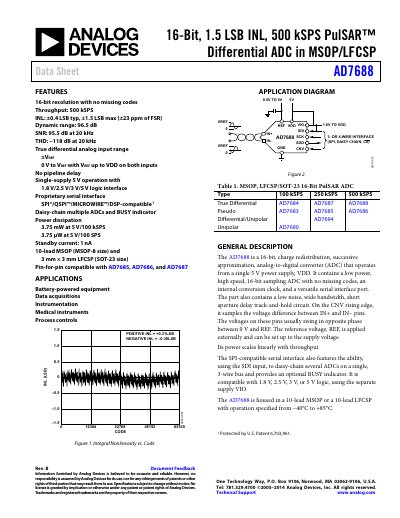

AD7688 16-Bit PulSAR Differential ADC Data Sheet
The AD7688 is a 16-bit, charge redistribution, successive approximation analog-to-digital converter (ADC) that operates from a single 5 V power supply. It features a proprietary serial interface compatible with SPI, QSPI, MICROWIRE, and DSP protocols, allowing for daisy-chaining multiple devices. The device includes an internal conversion clock and a low noise, wide bandwidth track-and-hold circuit.
Read onlineAnalog Devices AD7688 specifications
| Resolution | 16 Bits |
|---|---|
| Throughput | 500 kSPS |
| Integral Linearity Error | ±1.5 LSB max |
| Dynamic Range | 96.5 dB |
| Signal-to-Noise Ratio | 95.5 dB at 20 kHz |
| Total Harmonic Distortion | −118 dB at 20 kHz |
| Analog Input Voltage Range | −VREF to +VREF |
| Operating Temperature Range | −40°C to +85°C |
| Power Dissipation | 21.5 mW at 500 kSPS |
All Analog Devices AD7688 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum throughput of the AD7688?
The maximum conversion rate is 500 kSPS.
Does the AD7688 support daisy-chaining?
Yes, it supports daisy-chaining multiple ADCs on a single 3-wire bus using the SDI input.
What is the maximum sampling rate of the AD7688?
The AD7688 can sample up to 500 kSPS.
What supply voltage range does the AD7688 support?
It operates from 4.5 V to 5.5 V (VDD).
What is the resolution of the AD7688?
The AD7688 provides a 16‑bit resolution with no missing codes.
What is the maximum sampling rate of the AD7688?
The ADC can sample at up to 500 kSPS.
