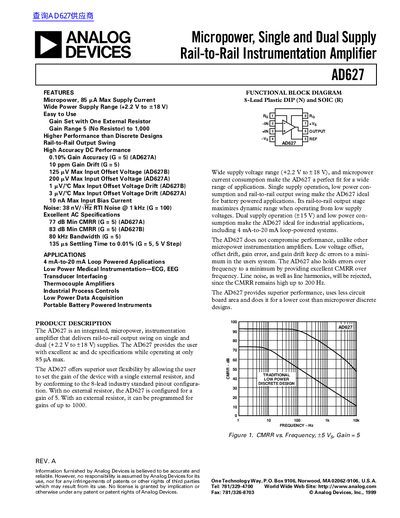

Analog Devices AD627 Micropower Instrumentation Amplifier Datasheet
The AD627 is a micropower, single and dual supply rail-to-rail instrumentation amplifier designed for high accuracy DC performance and excellent AC specifications. It features a wide power supply range and allows for easy gain adjustment using a single external resistor, with a gain range from 5 to 1,000. The device is suitable for applications such as medical instrumentation, transducer interfacing, and industrial process controls.
Read onlineAnalog Devices AD627 specifications
| Supply Current (Max) | 85 mA |
|---|---|
| Power Supply Range | +2.2 V to 618 V |
| Gain Range | 5 to 1,000 |
| Gain Accuracy (G=5) | 0.10% |
| Input Offset Voltage (Max) | 200 mV |
| Bandwidth (G=5) | 80 kHz |
| Settling Time (G=5) | 135 ms |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD627 Micropower Instrumentation Amplifier Datasheet
