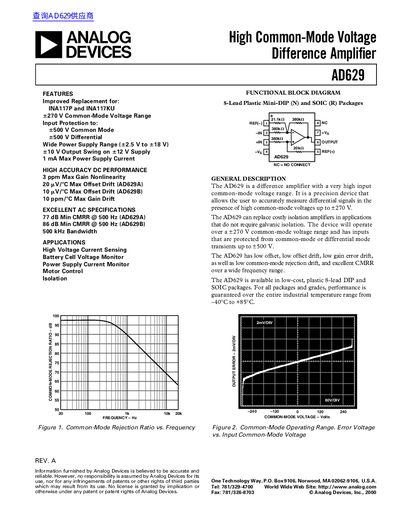

Analog Devices AD629 High Common-Mode Voltage Difference Amplifier Datasheet
The AD629 is a precision unity gain differential-to-single-ended amplifier capable of rejecting extremely high common-mode signals exceeding 270 V. It features an internal resistor network and operational amplifier to provide accurate measurements while protecting inputs from transients up to ±500 V.
The device operates over a wide supply voltage range of ±2.5 V to ±18 V and is available in 8-lead Plastic DIP (N) and SOIC (R) packages. It offers excellent DC performance with low offset drift and high accuracy, making it suitable for applications such as battery cell monitoring and motor control isolation.
Analog Devices AD629 specifications
| Min CMRR @ 500 Hz (AD629B) | 86 dB |
|---|---|
| Bandwidth | 500 kHz |
| Operating Temperature Range | -40°C to +85°C |
Source: Analog Devices AD629 High Common-Mode Voltage Difference Amplifier Datasheet
All Analog Devices AD629 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can the AD629 replace isolation amplifiers?
Yes, it can replace costly isolation amplifiers in applications that do not require galvanic isolation.
From: Analog Devices AD629 High Common-Mode Voltage Difference Amplifier Datasheet
What are the available package options?
It is available in 8-Lead Plastic Mini-DIP (N) and SOIC (R) packages.
From: Analog Devices AD629 High Common-Mode Voltage Difference Amplifier Datasheet
Does the AD629 require galvanic isolation?
No, the AD629 can replace isolation amplifiers in applications that do not need galvanic isolation.
What is the maximum common‑mode voltage the AD629 can handle?
The AD629 can operate with a common‑mode voltage range of ±270 V.
From: Analog Devices AD629 High Common-Mode Voltage Difference Amplifier Datasheet
What are the power‑supply voltage limits for the AD629?
The device accepts supply voltages from ±2.5 V up to ±18 V.
From: Analog Devices AD629 High Common-Mode Voltage Difference Amplifier Datasheet
