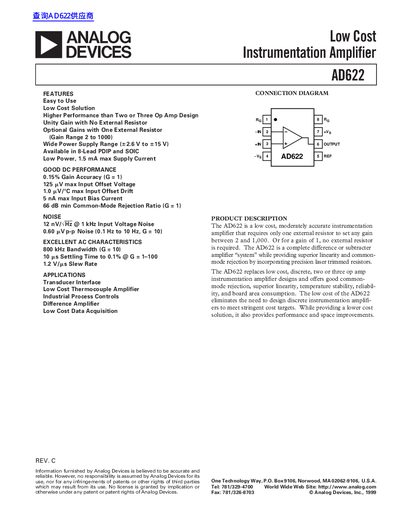

Analog Devices AD622 Instrumentation Amplifier Datasheet
The document describes the AD622, a low-cost, moderately accurate instrumentation amplifier designed to replace discrete two or three op-amp designs. It requires only one external resistor to set any gain between 2 and 1000, or no external resistor for unity gain. The device incorporates precision laser-trimmed resistors to provide superior linearity and common-mode rejection.
Read onlineAnalog Devices AD622 specifications
| Gain Range | 2 to 1000 (unity gain with no external resistor) |
|---|---|
| Supply Voltage Range | +2.6 V to +15 V |
| Max Input Offset Voltage | 125 µV |
| Input Bias Current | 5 nA max |
| Common-Mode Rejection Ratio (G=1) | 66 dB min |
| Bandwidth (G=10) | 800 kHz |
| Slew Rate | 1.2 V/µs |
| Operating Temperature Range | -40°C to +85 °C |
Source: Analog Devices AD622 Instrumentation Amplifier Datasheet
All Analog Devices AD622 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the AD622 require an external resistor for unity gain?
No, it requires no external resistor for a gain of 1.
From: Analog Devices AD622 Instrumentation Amplifier Datasheet
What is the typical supply current?
The quiescent current ranges from 0.9 mA to 1.3 mA, up to a maximum of 1.5 mA over temperature.
From: Analog Devices AD622 Instrumentation Amplifier Datasheet
What is the gain range of the AD622?
The AD622 can be programmed for a gain from 1 to 1000.
From: Analog Devices AD622 Instrumentation Amplifier Datasheet
How is the gain set on the AD622?
Gain is set by a single external resistor (Rg) connected between pins 1 and 8.
From: Analog Devices AD622 Instrumentation Amplifier Datasheet
What is the gain range of the AD622?
The AD622 provides a gain range from 1 to 1000.
From: Analog Devices AD622 Instrumentation Amplifier Datasheet
What supply voltage range does the AD622 support?
It operates from +2.6 V up to +15 V.
From: Analog Devices AD622 Instrumentation Amplifier Datasheet
