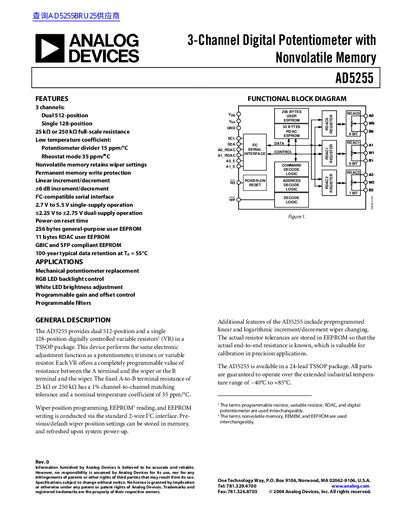

Analog Devices AD5255 3-Channel Digital Potentiometer Datasheet
The AD5255 is a 3-channel digitally controlled variable resistor (RDAC) available in a 24-lead TSSOP package. It provides two dual 512-position channels and one single 128-position channel, offering full-scale resistances of either 25 kΩ or 250 kΩ with 1% channel-to-channel matching tolerance.
The device features a standard I²C-compatible serial interface for wiper programming, EEPROM reading, and writing. It includes 256 bytes of general-purpose user EEPROM and 11 bytes of RDAC-specific user EEPROM to retain settings during power cycles. The AD5255 operates on single-supply voltages from 2.7 V to 5.5 V or dual supplies from ±2.25 V to ±2.75 V over an industrial temperature range of -40°C to +85°C.
Analog Devices AD5255 specifications
| Package type | 24-lead TSSOP |
|---|---|
| Operating temperature range (Industrial) | -40°C to +85°C |
| Dual-supply voltage range | +2.25 V to +2.75 V / -2.25 V to -2.75 V |
| EEPROM capacity (General-purpose) | 256 bytes |
| EEPROM capacity (RDAC) | 11 bytes |
| Endurance (cycles) | 100 kcycles qualified |
Source: Analog Devices AD5255 3-Channel Digital Potentiometer Datasheet
All Analog Devices AD5255 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the AD5255 include nonvolatile memory?
Yes, it includes 256 bytes of general-purpose user EEPROM and 11 bytes of RDAC user EEPROM.
From: Analog Devices AD5255 3-Channel Digital Potentiometer Datasheet
What is the package type for the AD5255?
The device is available in a 24-lead TSSOP package.
From: Analog Devices AD5255 3-Channel Digital Potentiometer Datasheet
What supply voltages does the AD5255 support?
It can operate from a single supply of 2.7 V to 5.5 V or from a dual supply of +2.25 V to +2.75 V.
How many positions are available per channel?
The device provides two 512‑position channels and one 128‑position channel.
