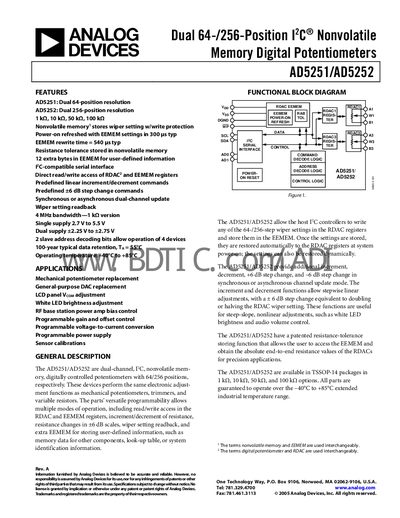

Analog Devices AD5251/AD5252 Digital Potentiometer Datasheet
The AD5251 and AD5252 are dual‑channel, I²C‑compatible, non‑volatile memory digital potentiometers offering 64‑step (AD5251) or 256‑step (AD5252) resolution. They provide programmable resistance settings, non‑volatile storage, and support for linear increment/decrement and ±6 dB step commands, making them suitable for applications such as LED brightness control, sensor calibration, and power‑amp biasing.
The devices operate from a single 2.7 V to 5.5 V supply (or dual‑supply ±2.25 V to ±2.75 V), retain data for up to 100 years, and can be addressed on a shared I²C bus with up to four devices. Detailed electrical characteristics, timing diagrams, and ordering information are provided for design integration.
Analog Devices AD5252 specifications
| Resolution | AD5251: 6 bits (64 steps), AD5252: 8 bits (256 steps) |
|---|---|
| Supply Voltage (single‑supply) | 2.7 V to 5.5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Resistance Tolerance | ±30 % |
| Data Retention | 100 years (typical) |
Source: Analog Devices AD5251/AD5252 Digital Potentiometer Datasheet
All Analog Devices AD5252 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD5251 and AD5252?
The AD5251 provides 6‑bit resolution (64 steps) and the AD5252 provides 8‑bit resolution (256 steps).
From: Analog Devices AD5251/AD5252 Digital Potentiometer Datasheet
What supply voltage range do the devices support?
They operate from a single supply of 2.7 V to 5.5 V, or from dual supplies of +2.25 V to +2.75 V.
From: Analog Devices AD5251/AD5252 Digital Potentiometer Datasheet
How many positions does the AD5251 provide?
The AD5251 provides 64 discrete positions.
