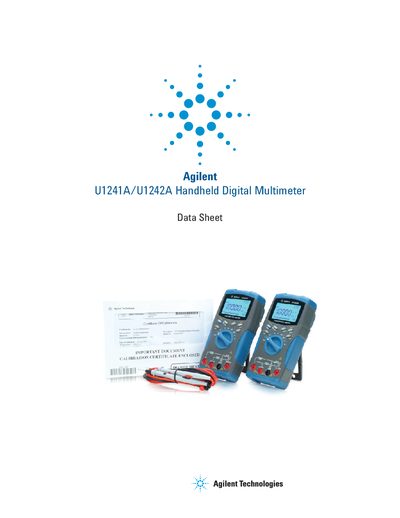

Agilent U1241A/U1242A Handheld Digital Multimeter Data Sheet
The U1241A/U1242A series handheld digital multimeters provide a 10,000‑count display, 0.09% basic DC voltage accuracy and True RMS AC measurement. Adjustable backlighting with two intensity levels and optional functions such as manual data logging, switch counter and harmonic ratio (U1242A only) enhance usability. The meters are built with an over‑mold body, CAT III 1000 V safety protection and are certified to CE, UL and CSA standards.
Technical specifications include a power consumption of 0.22 VA max, input impedance of 10 MΩ, operating temperature range –10 °C to 55 °C, dimensions 193.8 mm × 92.2 mm × 58.0 mm and weight 450 g with batteries. The document also lists optional accessories such as various probes, alligator clips and a 400 A current clamp.
Agilent U1241A specifications
| Display count | 10,000 counts |
|---|---|
| Basic DCV accuracy | 0.09 % of reading |
| True RMS AC measurement | Supported |
| Backlight intensity levels | 2 |
| Safety category | CAT III 1000 V |
| Operating temperature range | -10 °C to 55 °C |
| Power consumption | 0.22 VA max |
| Dimensions (HxWxD) | 193.8 mm × 92.2 mm × 58.0 mm |
| Weight with batteries | 450 g |
Source: Agilent U1241A/U1242A Handheld Digital Multimeter Data Sheet
All Agilent U1241A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the display resolution of the U1241A/U1242A multimeter?
It has a 10,000‑count display.
From: Agilent U1241A/U1242A Handheld Digital Multimeter Data Sheet
What is the basic DC voltage accuracy?
The basic DCV accuracy is 0.09 % of reading.
From: Agilent U1241A/U1242A Handheld Digital Multimeter Data Sheet
