Start here

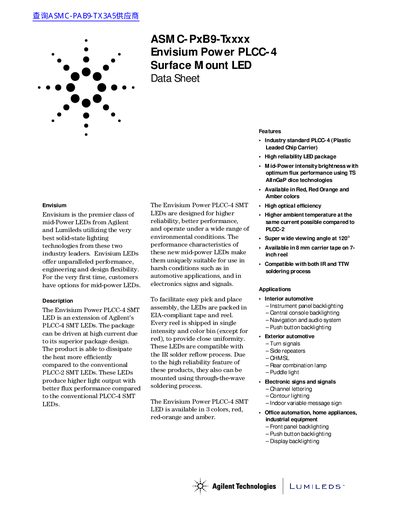

Agilent ASMC-PxB9-Txxxx Envisium Power PLCC-4 Surface Mount LED Data Sheet
The document describes the Envisium Power PLCC-4 Surface Mount LED (SMT), a product from Agilent Technologies utilizing AllnGaP dice technology. These mid-power LEDs are designed for high reliability and superior heat dissipation compared to conventional PLCC-2 packages, making them suitable for automotive applications and electronic signs.
Read onlineAgilent PLCC-4 specifications
| Package Type | PLCC-4 (Plastic Leaded Chip Carrier) |
|---|---|
| Available Colors | Red, Red Orange and Amber |
| DC Forward Current (Recommended) | 10 mA to 70 mA |
| Power Dissipation | 240 mW |
| Reverse Voltage | 5V |
| Junction Temperature | 125°C |
| Operating Temperature Range | -40°C to +100°C |
| Viewing Angle | 120° |
Source: Agilent ASMC-PxB9-Txxxx Envisium Power PLCC-4 Surface Mount LED Data Sheet
All Agilent PLCC-4 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What soldering processes are these LEDs compatible with?
The LEDs are compatible with both IR (Infrared) and TTW (Through-the-Wave) soldering processes.
From: Agilent ASMC-PxB9-Txxxx Envisium Power PLCC-4 Surface Mount LED Data Sheet
What is the recommended drive current for best long-term performance?
The recommended drive current range is between 10 mA and 70 mA.
From: Agilent ASMC-PxB9-Txxxx Envisium Power PLCC-4 Surface Mount LED Data Sheet
What colors are available for the Envisium Power PLCC-4 SMT LED?
The LEDs are available in Red, Red Orange, and Amber colors.
From: Agilent ASMC-PxB9-Txxxx Envisium Power PLCC-4 Surface Mount LED Datasheet
What is the viewing angle of this LED?
The product features a super wide viewing angle at 120°.
From: Agilent ASMC-PxB9-Txxxx Envisium Power PLCC-4 Surface Mount LED Datasheet
