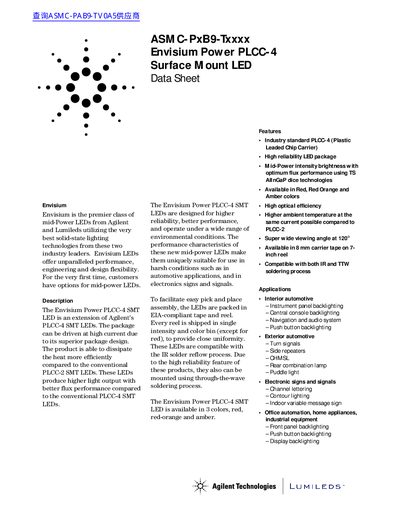

The Envisium Power PLCC-4 SMT LED is an extension of Agilent’s PLCC-4 SMT LEDs. The package can be driven at high current and has outstanding optical efficiency and super wide viewing angle. This data sheet provides detailed specifications and applications for this product.
The document describes the Envisium Power PLCC-4 Surface Mount LED (SMT), a product from Agilent Technologies and Lumileds. These LEDs are designed as an extension of Agilent's standard PLCC-4 SMT line, offering superior heat dissipation compared to conventional PLCC-2 models. They utilize TS AllnGaP dice technologies to provide high reliability and optimum flux performance.
| Packaging Option | PLCC-4 (Plastic Leaded Chip Carrier) |
|---|---|
| Operating Temperature Range | -40°C to +100°C |
| Junction Temperature | 125°C |
| DC Forward Current (Recommended) | 70 mA |
| Peak Forward Current | 200 mA |
| Power Dissipation | 240 mW |
| Reverse Voltage | 5V |
The LEDs are available in Red, Red Orange, and Amber colors.
The product features a super wide viewing angle at 120°.
