Start here

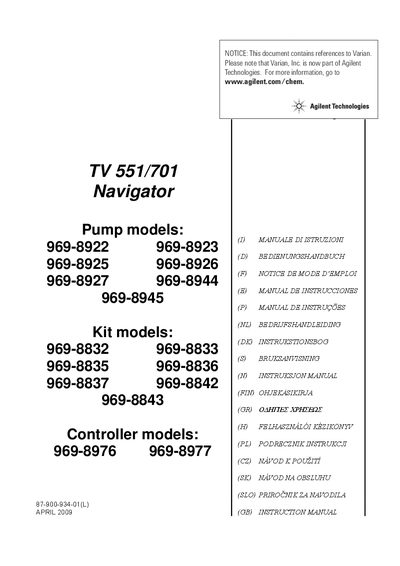

Agilent Technologies Turbo-V 551/701 Navigator 969-8923 Manual
The document is a user guide for the Varian (now Agilent Technologies) TV 551/701 Navigator, an integrated system consisting of a high and ultra-high vacuum turbomolecular pump and its controller. The manual covers safety precautions, storage conditions, and preparation for installation. This manual is written in Italian.
Read onlineAgilent TV 551 specifications
| Pumping speed (N2) | 450 l/s (V450) / 550 l/s (V551) |
|---|---|
| Pumping speed (He) | 400 l/s (V450) / 600 l/s (V551) |
| Weight | 25.0 kg (V450) / 19.4 kg (V551) |
| Inlet flange | ISO160 |
Source: Agilent V551M vs V450 Series Vacuum Pumps Technical Memo
All Agilent TV 551 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What types of substances is the TV 551/701 Navigator pump suitable for pumping?
The system can pump any type of gas or gaseous compound, but it is not suitable for liquids or solid particles.
From: Agilent Technologies Turbo-V 551/701 Navigator 969-8923 Manual
What are the maximum storage temperature and relative humidity limits for the pump?
The pump must be stored at temperatures between -20 °C and 70 °C with a relative humidity of 0 to 95% (non-condensing).
From: Agilent Technologies Turbo-V 551/701 Navigator 969-8923 Manual
Is the V450 controller compatible with the V551 pump?
No, the V450 controllers are not able to operate the V551 pump and must be exchanged.
From: Agilent V551M vs V450 Series Vacuum Pumps Technical Memo
What is the major technical advantage of the V551?
The higher and newer technology of the turbo pump, better vacuum performances, and MacroTorr stages.
From: Agilent V551M vs V450 Series Vacuum Pumps Technical Memo
