Key facts
- Brand
- Agilent
- Model
- 4000 GC
- Documents
- 3
- Languages
- EN
- Last added
- 2012-06-07
Start here

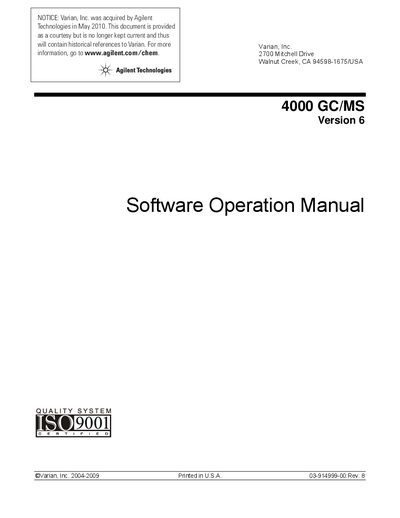

Agilent Technologies 4000 GC/MS Version 6 Software Operation Manual
This document serves as an operation manual for the Varian (now Agilent) 4000 GC/MS Version 6 Software. It details how to use the MS Workstation to acquire data, build methods, and operate the instrument, specifically covering configuration with a 3800 GC system via Ethernet communication.
The guide covers essential workflows such as navigating the System Control window, configuring temperatures and diagnostics, building methods using Star Assistant or Method Builder, and executing automated sequences. It also includes references for ionization techniques like Internal Electron Ionization and MS/MS tandem mass spectrometry.
Agilent 4000 GC specifications
| Optimum Operating Temperature | 18° to 21 °C (65° and 70 °F) |
|---|---|
| Average Steady-State Heat Load | 6000 BTUs/hour |
| Power Source (North America/Japan) | 20A, 90-130 Vac, 60 Hz |
| Power Source (Outside NA/Japan) | 10A, 180-260 Vac, 50 Hz |
All Agilent 4000 GC documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended width for passages to the installation site?
All passages to the site of installation must be at least 91.5 cm (36 in.) wide.
What is the maximum height for a workbench supporting the mechanical pump?
The workbench should be no higher than 91 cm (36 in.).
What is the maximum cable length between the computer and MS?
The cable cannot be longer than five meters (16.4 feet) without adding powered hubs or extension cables.
From: Agilent Technologies 4000 GC/MS Pre-Installation Instructions
What are the power requirements for North America?
Power sources must be 20A, 90-130 Vac, 60 Hz +3 Hz.
From: Agilent Technologies 4000 GC/MS Pre-Installation Instructions
What is the version of this software manual?
This document covers Version 6 of the 4000 GC/MS Software.
From: Agilent Technologies 4000 GC/MS Version 6 Software Operation Manual
What is this manual used for?
This manual shows you how to acquire data, build methods, and operate the Varian 4000 GC/MS using the Varian MS Workstation.
From: Agilent Technologies 4000 GC/MS Version 6 Software Operation Manual
