Key facts
- Brand
- Agilent
- Model
- 4000 MS
- Documents
- 5
- Languages
- EN
- Last added
- 2012-06-07
Start here

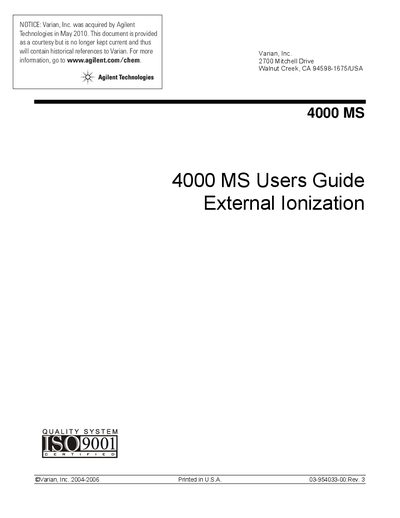

Agilent Technologies 4000 MS External Ionization User Guide
The document serves as a user guide for the Agilent Technologies 4000 Mass Spectrometer when configured with an external ion source. It details the operational configurations, including External Electron Ionization (EI), Positive Chemical Ionization (PCI), and Negative Chemical Ionization (NCI). The text explains how ions are formed in the external source, transferred to the ion trap analyzer, and analyzed.
The guide provides step-by-step instructions for starting the instrument, performing diagnostic tests, adjusting system temperatures, and conducting mass calibration. It also covers method creation, data acquisition procedures, sample injection via a SampleList, and software interface usage for viewing parameters and activating methods.
Agilent 4000 MS specifications
| Optimum Operating Temperature | 18° and 21 °C (65° and 70 °F) |
|---|---|
| Average Steady-State Heat Load | 6000 BTUs/hour |
| Power Draw (Normal) | about 600 watts |
| Power Draw (Bake out) | 1000 watts |
Source: Agilent Technologies 4000 GC/MS Pre-Installation Instructions
All Agilent 4000 MS documents by type
Disassembly, diagnostics and part numbers, for repair.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which specific serial numbers require this upgrade kit?
This kit is designed for fourteen instruments with serial numbers 113 through 122, plus 124, 125, 127, and 128.
From: Agilent Technologies 4000 MS Controller PWA Jumpers Upgrade Kit Instructions
When must this upgrade be performed relative to the software update?
The installation should be completed before upgrading the MS Workstation software to version 6.42.
From: Agilent Technologies 4000 MS Controller PWA Jumpers Upgrade Kit Instructions
What is the maximum cable length between the computer and MS?
The cable cannot be longer than five meters (16.4 feet) without adding powered hubs or extension cables.
From: Agilent Technologies 4000 GC/MS Pre-Installation Instructions
What are the power requirements for North America?
Power sources must be 20A, 90-130 Vac, 60 Hz +3 Hz.
From: Agilent Technologies 4000 GC/MS Pre-Installation Instructions
Can I collect Negative Chemical Ionization data in Internal configuration?
No, it is not possible to collect Negative Chemical (NCI) data in Internal configuration.
From: Agilent Technologies 4000 MS Internal Ionization User Guide
What ionization methods are available for the 4000 MS Internal configuration?
The system can collect Electron Ionization (EI) or Positive Chemical Ionization (PCI) data.
From: Agilent Technologies 4000 MS Internal Ionization User Guide
