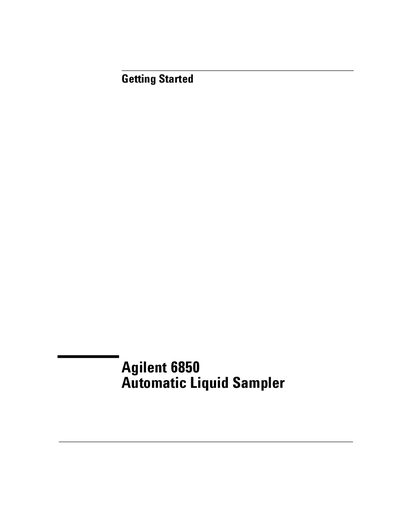

Agilent 6850 Automatic Liquid Sampler Getting Started Guide
This document serves as a getting started guide for the Agilent Technologies 6850 Automatic Liquid Sampler (ALS). The sampler is specifically designed for use with the 6850 Gas Chromatograph (GC) and consists of an injector module with a high sample vial capacity turret. It mounts directly onto the GC and is controlled by compatible modules such as the G2629A Control Module, Agilent Cerity NDS system, or Agilent ChemStation.
Read onlineAll Agilent 6850 Automatic Liquid Sampler documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the Agilent 6850 Automatic Liquid Sampler designed for?
It is specifically designed for use with a 6850 Gas Chromatograph (GC).
From: Agilent 6850 Automatic Liquid Sampler Getting Started Guide
What are the ratings for fuses F001 and F002?
They are rated at 3 A, 250 Vac.
From: Agilent 6850 Automatic Liquid Sampler Getting Started Guide
Do I need to align the turret after installation?
Alignment is required if you installed a different turret type (e.g., 2-mL to 4-mL). If the same turret is reinstalled, alignment is not necessary but recommended.
From: Agilent 6850 Automatic Liquid Sampler Installing the Turret Accessory Guide
What should I do if the alignment fails?
Refer to the section on the injector and automatic sampler in your 6850 GC User Information CD-ROM for details about indicator lights, likely causes, and resolution.
From: Agilent 6850 Automatic Liquid Sampler Installing the Turret Accessory Guide
