Key facts
- Brand
- Agilent
- Model
- V301 Series
- Documents
- 3
- Languages
- EN
- Last added
- 2012-07-05
Start here

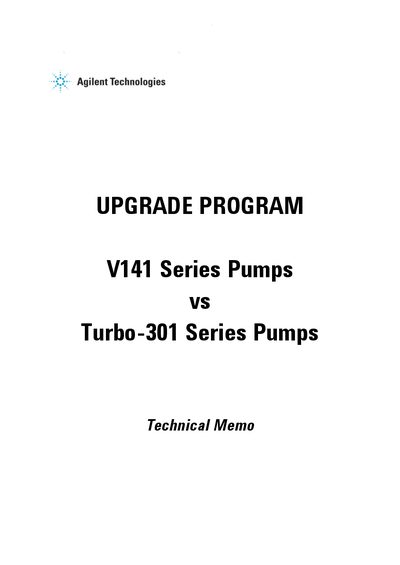

Agilent V141 vs Turbo-301 Pumps Technical Memo
Other 22 pages · 681 KB · EN
This document serves as a technical memo comparing the Agilent V141 Series pumps against the Turbo-301 Series pumps. It provides outline drawings for various configurations (ISO63, CF4-%4, ISO100, CF6) and lists replacement suggestions involving reducers and on-board controllers.
Read onlineAgilent V301 Series specifications
| Total height (ISO100) | 273.50 mm (V200) / 174.0 mm (V301) |
|---|---|
| Pumping speed N2 | 200 l/s (V200) / 250 l/s (V301) |
| Pumping speed H2 | 150 l/s (V200) / 200 l/s (V301) |
| Ultimate pressure with rotary | < 1x10^-9 mbar |
| Power consumption | 170 W (V200) / 150 W (V301) |
All Agilent V301 Series documents by type
Other 2
Product Leaflet 1
Questions answered in these manuals
What is the total height of the V141 ISO63 pump?
The total height of the V141 ISO63 pump is 239.0 mm.
What are the rotational speeds for the V200A and V301 pumps?
The V200A operates at 51,000 rpm while the V301 operates at 56,000 rpm.
What is the maximum forevacuum pressure for the V301 pump with nitrogen?
The maximum forevacuum pressure for the V301 with nitrogen is 18 mbar.
What is the major technical advantage of the V301 pump?
The V301 features higher and newer technology, better vacuum performance, and is completely oil-free for clean vacuum.
Is the V200 controller compatible with the V301?
No, the controller is not compatible and must be exchanged for either an on-board Navigator or AG Rack version.
