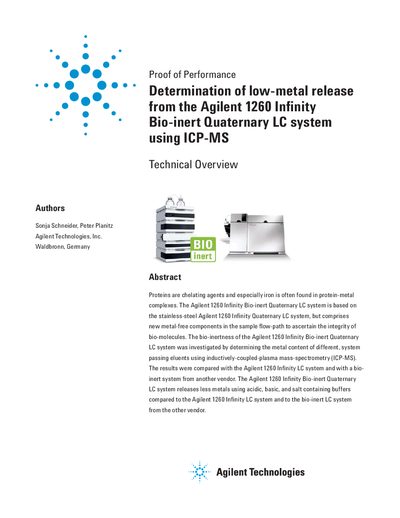

Agilent 1260 Infinity Bio-inert Quaternary LC System Metal Release Technical Overview
This document provides a technical overview and proof of performance for the Agilent 1260 Infinity Bio-inert Quaternary LC system. It details an investigation into the system's bio-inertness by measuring metal content in eluents using inductively-coupled-plasma mass-spectrometry (ICP-MS). The study compares the Agilent system against a standard stainless-steel Agilent 1260 Infinity LC system and a bio-inert system from another vendor.
Read onlineAgilent 1260 Infinity Bio-inert Quaternary LC system specifications
| Maximum pressure | 600 bar |
|---|---|
| Maximum temperature | 80 °C |
| Flow rate range | up to 5 mL/min |
| Retention time precision (gradient) | < 0.08 % RSD |
| Retention time precision (fast gradient) | < 0.11% RSD |
| Retention time precision (isocratic) | < 0.1% RSD |
| Ripple on 10% step | 0.07% |
| Ripple on 50% step | 0.06% |
| Ripple on 90% step | 0.07% |
| System delay volume | 1,000 pL |
| Area precision (1 pL injection) | <0.33 % |
| Area precision (0.5 pL injection) | <0.75% |
Source: Agilent 1260 Infinity Bio-inert Quaternary LC System Technical Overview
All Agilent 1260 Infinity Bio-inert Quaternary LC system documents by type
- Agilent 1260 Infinity Bio-inert Quaternary LC System Metal Release Technical Overview 4 p
- Agilent 1260 Infinity Bio-inert Quaternary LC System Technical Overview 12 p
- Agilent 1260 Infinity Bio-inert Quaternary LC System Features and Specifications 6 p
- Agilent 1260 Infinity Bio-inert Quaternary LC System Product Brochure 8 p
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the pH range the Agilent 1260 Infinity Bio-inert Quaternary LC system can withstand?
The system has a wider pH range of 1-13, with a short-term limit of 14.
From: Agilent 1260 Infinity Bio-inert Quaternary LC System Metal Release Technical Overview
Which metals were determined in the eluents using ICP-MS?
The metals determined were Titanium, Chromium, Manganese, Iron, Cobalt, Nickel, Copper, Zinc, Zirconium, and Molybdenum.
From: Agilent 1260 Infinity Bio-inert Quaternary LC System Metal Release Technical Overview
Is the 1260 Infinity Bio-inert Quaternary LC system compatible with standard methods?
Yes, it is compatible with standard methods with a maximum pressure of 600 bar.
From: Agilent 1260 Infinity Bio-inert Quaternary LC System Technical Overview
What is the maximum pressure supported by the system?
The system supports a maximum pressure of 600 bar.
From: Agilent 1260 Infinity Bio-inert Quaternary LC System Technical Overview
What is the maximum pressure capability of the system?
The system operates up to 600 bar (8700 psi) at flow rates up to 5 mL/min.
From: Agilent 1260 Infinity Bio-inert Quaternary LC System Features and Specifications
Is the system suitable for high salt concentrations?
Yes, it has a high salt tolerance of up to 2M.
From: Agilent 1260 Infinity Bio-inert Quaternary LC System Features and Specifications
