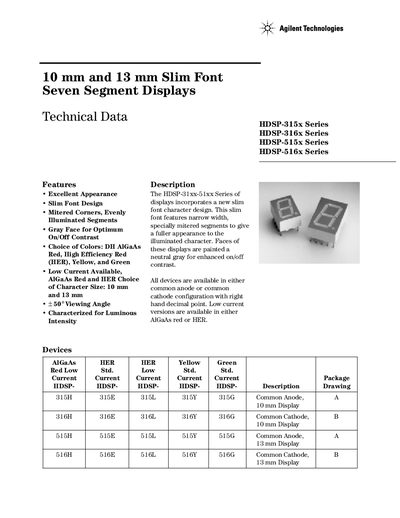

10mm and 13mm Slim Font Seven Segment Displays Technical Data
The HDSP‑315x series from Agilent Technologies provides slim‑font seven‑segment displays in 10 mm and 13 mm sizes. Both common‑anode and common‑cathode configurations are offered, with color options including AlGaAs Red, High‑Efficiency Red, Yellow and Green.
The datasheet lists electrical and optical characteristics such as forward voltage, luminous intensity, peak wavelength, and absolute maximum ratings. It also includes part‑numbering, mechanical options, and recommended cleaning and soldering practices.
| Display size | 10 mm and 13 mm |
|---|---|
| Package configuration | Common Anode (A) or Common Cathode (B) |
| Luminous intensity per segment (typical) | 180 cd |
| Peak wavelength | 645 nm |
| Operating temperature range | -20 °C to +100 °C |
| Reverse voltage per segment | 3.0 V |
The series is offered in 10 mm and 13 mm slim‑font displays.
They operate from –20 °C up to +100 °C.
Available colors are AlGaAs Red, High‑Efficiency Red, Yellow, and Green.
