The document describes the features and characteristics of AlGaAs HER HER Yellow Green Red Low Std. Low Std. Std. Current Current Current Current Current Package HDSP- HDSP- HDSP- HDSP- HDSP-.

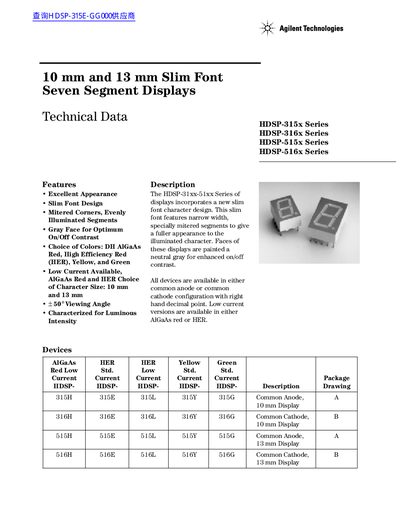

The HDSP‑315x series from Agilent Technologies provides slim‑font seven‑segment displays in 10 mm and 13 mm sizes. The displays are offered in multiple colors (AlGaAs Red, High‑Efficiency Red, Yellow, Green) and in both common‑anode and common‑cathode configurations.
The document lists mechanical and color bin options, absolute maximum ratings, electrical/optical characteristics, and guidance on soldering, cleaning and contrast enhancement. Contact information for technical support and distributors is also provided.
| Viewing Angle | +50° |
|---|---|
| Luminous Intensity (Red Low) | 180 mcd |
| Forward Voltage (typical) | 2.2 V |
| Reverse Voltage | 3.0 V |
| Thermal Resistance | 255 °C/W per segment |
The series offers AlGaAs Red, High‑Efficiency Red, Yellow, and Green devices.
