Key facts
- Brand
- Agilent
- Model
- 4500 Series
- Documents
- 6
- Languages
- ZH · EN
- Last added
- 2026-10-25
Start here
Agilent 4500 Series FTIR User Manual
The Agilent 4500 Series FTIR is a compact mid-infrared spectrometer platform designed for portable field chemical analysis outside of the laboratory. The system features a ruggedized case, an integrated battery providing up to 4 hours of operation, and a patented Michelson interferometer design to ensure performance in outdoor environments. It supports various sampling configurations including the TumblIR liquid analysis accessory, ATR, and Dialpath liquid analysis accessory. This manual is written in Chinese.
Read onlineAgilent 4500 Series specifications
| Dimensions | 22 x 29 x 19 cm (8.5 x 11.5 x 7.5 in) |
|---|---|
| Weight | 6.8 kg (15 lbs) |
| Operating Temperature | 0 - 50 °C (32 - 122 °F) |
| Power Supply | Built-in battery (4 hours), 100/120/240 V AC, 50/60 Hz |
| Spectral Range | 4000–650 cm-1 |
| Resolution | 4–32 cm-1 |
| Controller | PDA with Microsoft® Windows® Mobile 5.0 Premium |
| Pre-heat Time | 10 minutes |
| Response Time | 2 minutes |

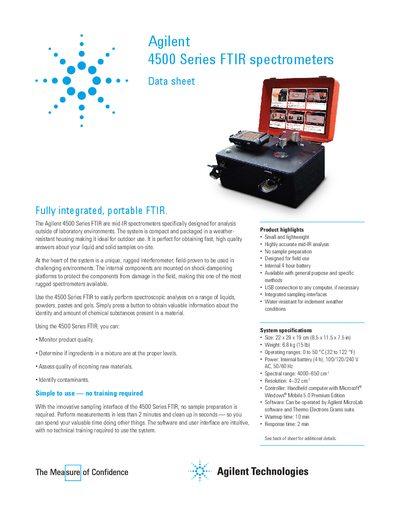

Source: Agilent 4500 Series FTIR Spectrometer Product Leaflet
All Agilent 4500 Series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What types of samples can the Agilent 4500 Series analyze?
It can analyze liquids, powders, pastes, gels, polymers, oils, lubricants, greases, dairy products, acids, gasoline, alkalis, diesel, wine, food, and soil.
Does the Agilent 4500 Series require sample preparation?
No, the system requires no sample preparation and can complete measurements in under 2 minutes.
What is the operating time of the Agilent 4500t FTIR with the integrated battery?
The system includes a standard built-in battery power source with an operating time of up to 4 hours.
What are the recommended applications for the Agilent 4500t FTIR with TumblIR?
It is designed for on-site oil analysis in diesel generators, wind farms, offshore, or marine applications.
What types of samples can the Agilent 4500 Series analyze?
The system is designed to perform spectroscopic analyses on a range of liquids, powders, pastes, and gels.
Is sample preparation required for use?
No, no sample preparation is required. Measurements can be performed in less than 2 minutes.
