Start here

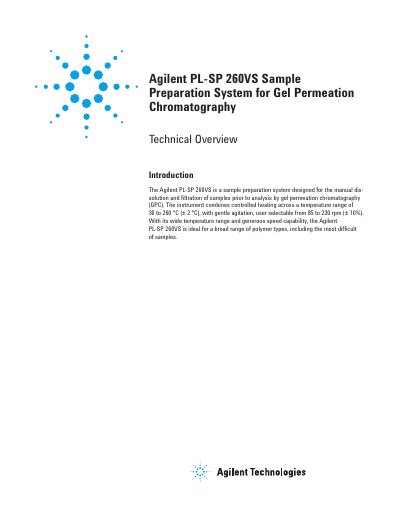

Agilent PL-SP 260VS Sample Preparation System Technical Overview
The Agilent PL-SP 260VS is a sample preparation system designed for the manual dissolution and filtration of samples prior to analysis by gel permeation chromatography (GPC). It combines controlled heating across a temperature range of 30 to 260 °C with gentle agitation, selectable from 85 to 230 rpm.
The system allows for the dissolution and filtration of samples at temperatures up to 260 °C using a heater/shaker unit. Filtration is achieved using a unique hand-held pipettor with filter magazines containing stainless steel frits or glass fiber filters, specifically suited for removing fine, insoluble particulates such as carbon black from high molecular weight polymers.
Agilent PL-SP 260VS specifications
| Temperature Range | 30 to 260 °C (+ 2 °C) |
|---|---|
| Agitation Speed | 85 to 230 rpm (+ 10%) |
| Filter Pore Sizes | 0.5 to 10 µm (stainless steel) or 1 µm (glass fiber) |
| Column | Agilent PLgel 10 µm MIXED-B, 7.5 x 300 mm |
| Eluent | THF (stabilized) |
| Flow rate | 1 mL/min |
| Detector | UV, 254 nm |
Source: Agilent PL-SP 260VS Sample Preparation System Technical Overview
All Agilent PL-SP 260VS documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the temperature range of the Agilent PL-SP 260VS?
The system provides controlled heating across a temperature range of 30 to 260 °C.
From: Agilent PL-SP 260VS Sample Preparation System Technical Overview
What agitation speeds are available on the system?
The user can select agitation speeds from 85 to 230 rpm.
From: Agilent PL-SP 260VS Sample Preparation System Technical Overview
What solvent is most effective for dissolving polyolefins?
Trichlorobenzene is generally the most effective solvent due to its ability to dissolve highly crystalline materials.
From: Agilent Polyolefin Analysis by GPC/SEC Application Compendium
What is the temperature range of the Agilent PL-SP 260VS Sample Preparation System?
The system provides controlled heating across a temperature range of 30 to 260 °C.
From: Agilent Polyolefin Analysis by GPC/SEC Application Compendium
