Key facts
- Brand
- Agilent
- Model
- 7000 series GC
- Documents
- 3
- Languages
- FR · EN
- Last added
- 2012-07-06
Start here

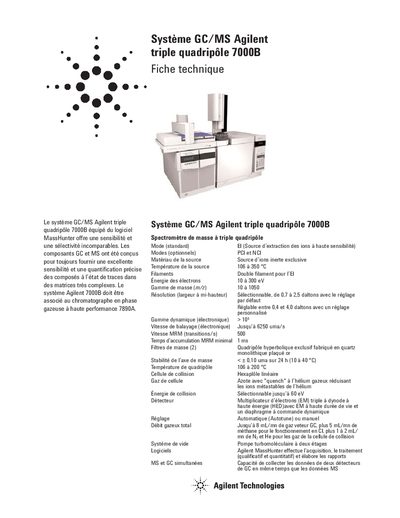

Agilent 7000B Triple Quadrupole GC/MS System Datasheet
This document provides a technical datasheet for the Agilent 7000B Triple Quadrupole GC/MS System, which is designed to be used with the Agilent 7890A Gas Chromatograph. The system utilizes the MassHunter software for data acquisition and analysis. This manual is written in French.
Read onlineAgilent 7000 series GC specifications
| Source Material | Quartz monolithic gold-plated |
|---|---|
| Mass Resolution (FWHM) | Selectable from 0.7 to 2.5 daltons |
| Detector Type | Triple Electron Multiplier (EM) |
| Vacuum System | Two-stage Turbomolecular Pump |
| MS Dimensions | 35 cm (W) x 86 cm (D) x 47 cm (H) |
| MS Weight | 59 kg |
Source: Agilent 7000B Triple Quadrupole GC/MS System Datasheet
All Agilent 7000 series GC documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
Which software is used with this system?
The system uses Agilent MassHunter software for acquisition and analysis.
From: Agilent 7000B Triple Quadrupole GC/MS System Datasheet
What gas chromatograph is required for the Agilent 7000B system?
The Agilent 7000B system must be combined with the high-performance 7890A gas chromatograph.
From: Agilent 7000B Triple Quadrupole GC/MS System Data Sheet
What is the Instrument Detection Limit (IDL) for EI MRM mode?
The EI MRM IDL is 12 fg or less of octafluoronaphthalene (OFN).
From: Agilent 7000B Triple Quadrupole GC/MS System Data Sheet
What is the limit of quantitation for most pesticides in this study?
The study showed a limit of quantitation of 1 ng/mL or lower for most pesticides.
From: Agilent 7890/7000 Series GC/MS Application Note for Pesticide Analysis
What is the concentration range used for the linearity evaluation?
A calibration curve ranging from 1 to 100 ng/mL was used for linearity evaluation.
From: Agilent 7890/7000 Series GC/MS Application Note for Pesticide Analysis
