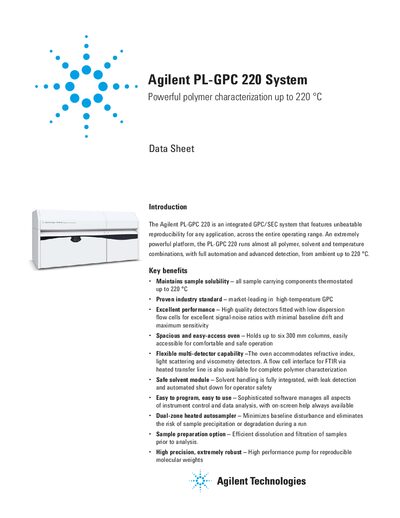

Agilent PL-GPC 220 System Data Sheet
The PL‑GPC 220 is an integrated GPC/SEC system that operates up to 220 °C, offering reproducible polymer analysis with multi‑detector flexibility, a heated autosampler, and a safe solvent delivery module. Key benefits include thermostated sample components, high‑precision pump performance, and easy‑access oven for up to six columns.
The data sheet provides detailed specifications such as flow range, temperature stability, detector cell volumes, and autosampler capacity, along with ordering information for the system and optional modules.
Agilent PL-GPC 220 specifications
| Flow range | 0.1 - 5.0 mL/min software controlled |
|---|---|
| Flow rate precision | ≤ 0.07 % RSD, or ≤ 0.02 min SD |
| Temperature range | Ambient to 220 °C |
| Temperature stability | < 0.05 °C/h |
| Column capacity | Up to six 300 × 7.8 mm columns |
| RI detector cell volume | 8 µL |
| Autosampler carousel | 40 × 2 mL vials |
| Viscometer linearity | 0.5 % FS |
| Light scattering cell volume | 10 µL |
All Agilent PL-GPC 220 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum temperature the PL‑GPC 220 oven can reach?
The oven can be set from ambient up to 220 °C.
How many columns can the PL‑GPC 220 hold?
It can accommodate up to six 300 mm columns.
What instrument and detection method are used for the analysis?
The analysis uses the Agilent PL-GPC 220 instrument equipped with RI detection.
From: Agilent Analysis of Polythiophenes via Conventional GPC Application Note
What is the flow rate for the eluent?
The flow rate for the eluent is 1.0 mL/min.
From: Agilent Analysis of Polythiophenes via Conventional GPC Application Note
What solvent is most effective for dissolving polyolefins?
Trichlorobenzene is generally the most effective solvent due to its ability to dissolve highly crystalline materials.
From: Agilent Polyolefin Analysis by GPC/SEC Application Compendium
What is the temperature range of the Agilent PL-SP 260VS Sample Preparation System?
The system provides controlled heating across a temperature range of 30 to 260 °C.
From: Agilent Polyolefin Analysis by GPC/SEC Application Compendium
