The file introduces the features and characteristics of the HDSP-5082/7610 series of digital seven-segment displays. The product features include industry standard size, industry standard pinout, color selection, excellent appearance, design flexibility, high light output, high peak current, suitable for long digit string multiplexing, optional brightness and color, and sunlight visibility.

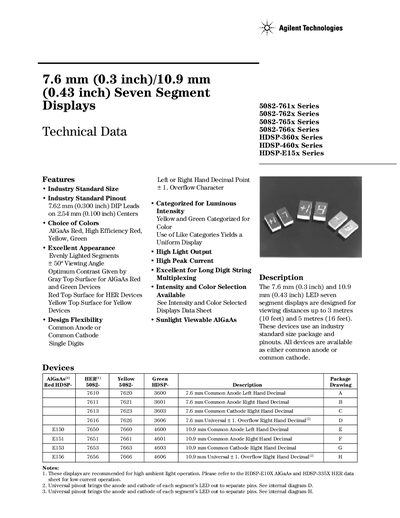

The Agilent 5082‑761x series provides 7.6 mm (0.3 in) and 10.9 mm (0.43 in) seven‑segment LED displays with options for common anode or common cathode, multiple colors, and intensity bins. Devices are designed for high ambient‑light operation and long digit strings, with detailed electrical, optical, and mechanical data included.
The datasheet lists part‑numbering, mechanical options, absolute maximum ratings, electrical/optical characteristics, luminous‑intensity bins, and references to application notes for contrast enhancement and soldering procedures. Contact information for Agilent sales and technical support is provided at the end of the document.
| Forward Voltage per segment (typical) | 2.0 V |
|---|---|
| Forward Voltage per segment (maximum) | 3.0 V |
| Operating Temperature Range | -20 to +100 °C |
| Storage Temperature Range | -55 to +100 °C |
The displays are rated for operation from –20 °C to +100 °C.
Typical forward voltage is 2.0 V per segment, with a maximum of 3.0 V.
Contrast‑enhancement details are provided in Application Note 1015.
Soldering and cleaning instructions are in Application Note 1027.
