The document introduces the features and characteristics of the 5082-7730 series LED seven-segment digital tube, including industry standard size, industry standard pinout, multiple color selection, uniform lighting, gray package, high light output, high peak current, excellent for long digit string multiplexing, intensity and color selection, and sunlight visibility.

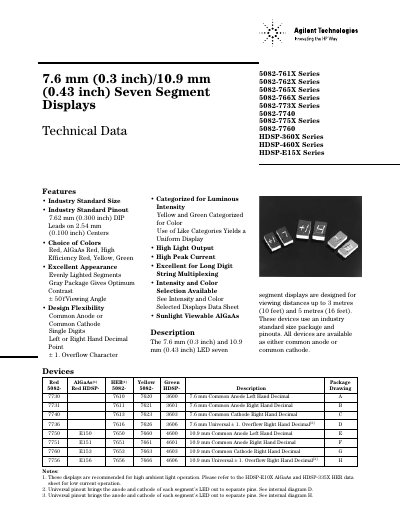

The Agilent 5082-761X series provides industry‑standard 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) DIP seven‑segment LED displays. They are offered in a variety of colors, including red, AlGaAs red, high‑efficiency red, yellow and green, and support both common‑anode and common‑cathode configurations with optional left‑ or right‑hand decimal points.
These devices feature high luminous intensity, wide viewing angles (±50°), and are suitable for high ambient light environments and long digit string multiplexing. Detailed electrical parameters such as forward voltage, reverse voltage, peak wavelength and temperature ranges are provided for design engineers.
| Package size (DIP lead spacing) | 7.62 mm (0.300 in) on 2.54 mm (0.100 in) centers |
|---|---|
| Forward voltage (5082-761X) | 2.1 – 2.5 V at 20 mA |
| Peak wavelength | 635 nm |
Yes, all devices are available as either common anode or common cathode.
The forward voltage ranges from 2.1 V to 2.5 V at 20 mA.
