The HDSP-5082 series of light emitting diode displays (LEDs) are industry standard size and feature 7.62mm (0.300 inch) DIP leads on 2.54mm (0.100 inch) centers. The products have a choice of colors (AlGaAs Red, High Efficiency Red, Yellow and Green), evenly lighted segments, ±50° viewing angle and optimum contrast. Products also feature design flexibility with a choice of common anode or common cathode, single digits, left or right hand decimal point, ±1. overflow character. Products also feature high light output, high peak current, excellent for long digit string multiplexing, intensity and color selection available and are sun light viewable.

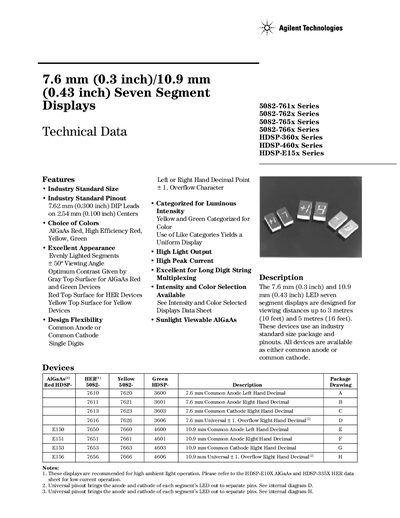

This datasheet covers the 5082-761x through HDSP-E15x series of 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) seven-segment LED displays. The devices are available in AlGaAs Red, High Efficiency Red, Yellow, and Green colors with industry-standard DIP packages and pinouts.
| Viewing Distance (7.6 mm) | up to 3 metres (10 feet) |
|---|---|
| Viewing Distance (10.9 mm) | 5 metres (16 feet) |
| Package Type | 7.62 mm DIP Leads on 2.54 mm Centers |
| Storage Temperature Range | -55 to +100 °C |
The devices are available in AlGaAs Red, High Efficiency Red, Yellow, and Green.
All devices are available as either common anode or common cathode.
