This document introduces the features of HDSP-5082 series LED digital tube, including size, pin definition, color, brightness, application scenarios, etc.

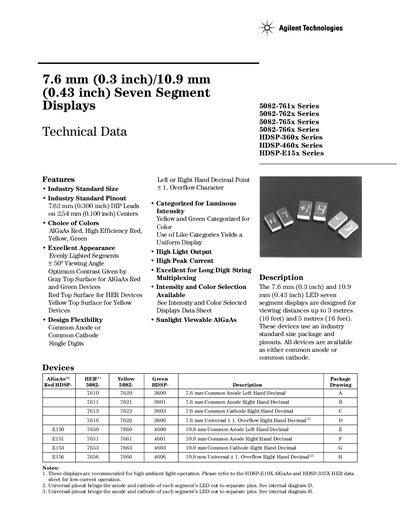

The Agilent 5082-761x series provides 7.6 mm (0.3 in) and 10.9 mm (0.43 in) LED seven‑segment displays designed for viewing distances up to 3 m (10 ft). They use an industry‑standard package with options for common anode or common cathode and left or right hand decimal points, plus an overflow character.
These displays are available in multiple colors (AlGaAs Red, High‑Efficiency Red, Yellow, Green) and support a wide range of luminous intensity bins, making them suitable for high ambient‑light environments, long digit‑string multiplexing, and sunlight‑viewable applications.
| Luminous Intensity per Segment (AlGaAs Red) | 8.5 – 15.0 cd (typ) at 20 mA |
|---|---|
| Forward Voltage per Segment (AlGaAs Red) | 2.0 – 3.0 V at 100 mA |
| Peak Wavelength (AlGaAs Red) | 645 nm |
| Operating Temperature Range | -20 °C to +100 °C |
| Storage Temperature Range | -55 °C to +100 °C |
| Reverse Voltage per Segment | 3.0 V |
| Thermal Resistance (Junction‑to‑Pin) | 340 °C/W |
| Package Size (10.9 mm version) | 10.9 mm (0.43 in) Single Digit Seven Segment Display |
The series offers AlGaAs Red, High‑Efficiency Red, Yellow, and Green color options.
Yes, each device can be ordered as either common anode or common cathode.
The peak forward current per segment is up to 90 mA.
Contact Agilent technical support using the phone numbers listed in the document (e.g., +1 800 235‑0312 for the Americas).
