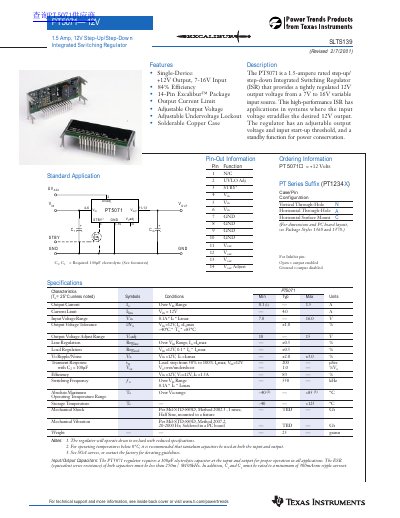

TEXAS INSTRUMENTS SLTS139 handbook(1)
Datasheet 4 pages · 131 KB · EN
The PT5071 is a single-device integrated switching regulator (ISR) designed to provide a tightly regulated +12V output from an input voltage range of 7V to 16V. It features high efficiency, adjustable output and undervoltage lockout thresholds, and includes a standby function for power conservation.
Read onlineTexas Instruments SLTS139 specifications
| Input Voltage Range | 7 to 16 V |
|---|---|
| Output Voltage Tolerance | ±2% |
| Operating Temperature Range | -40 to +85 °C |
All Texas Instruments SLTS139 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output voltage of the PT5071?
The regulator provides a tightly regulated +12V output.
What input voltage range does the PT5071 support?
It operates with an input source ranging from 7V to 16V.
What is the efficiency of the PT5071?
The regulator achieves up to 84% efficiency.
What package does the PT5071 use?
It uses a 14-Pin Excalibur™ Package.
