Texas Instruments SLTS179A PT6360 Series Integrated Switching Regulator Datasheet

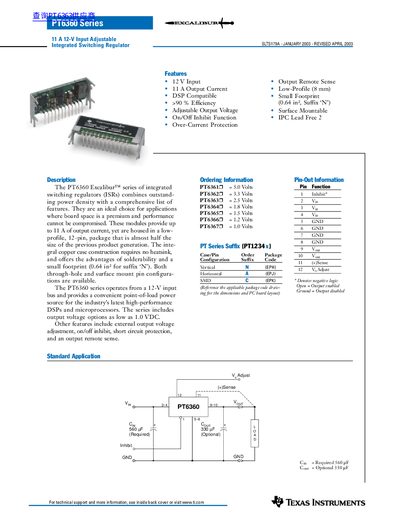

The document describes the PT6360 Series of integrated switching regulators (ISRs) manufactured by Texas Instruments. These modules are designed to operate from a 12-V input to provide step-down voltage conversion for output loads of up to 11 A. They are ideal for applications where board space is a premium, offering a low-profile 12-pin package that is almost half the size of previous generations. The series includes various output voltage options ranging from 1.0 VDC to 5.0 VDC.
Read onlineTexas Instruments SLTS179A specifications
| Output Current | 11 A |
|---|---|
| Switching Frequency | 300 to 400 kHz |
| Package Type | 12-pin |
Source: Texas Instruments SLTS179A PT6360 Series Integrated Switching Regulator Datasheet
All Texas Instruments SLTS179A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the regulator include over-current protection?
Yes, it incorporates output over-current protection that shuts down the regulated output.
From: Texas Instruments SLTS179A PT6360 Series Integrated Switching Regulator Datasheet
What capacitance is required for the external input capacitor?
A minimum of 560 uF is required for proper operation.
From: Texas Instruments SLTS179A PT6360 Series Integrated Switching Regulator Datasheet
What is the maximum output current of the PT6360 series?
The modules provide up to 11 A of output current for voltages below 3.3 V.
Does the PT6360 require a heatsink?
No, the integral copper case construction requires no heatsink.
