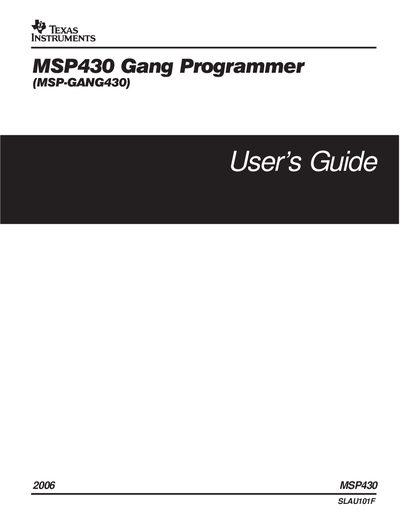

TEXAS INSTRUMENTS MSP430 user guide
This guide introduces the MSP‑GANG430, an MSP430 device programmer capable of programming up to eight flash devices simultaneously. It explains how to install the software and hardware, connect the programmer to a PC via a standard RS‑232 serial port, and use the provided expansion board and eight cables to reach target devices.
The manual covers operation of the GUI, firmware command protocol, dynamic link library (GANG430.DLL), hardware specifications, target connector signals, and file formats such as Intel‑Hex and TI‑TXT. Schematics and component locations are provided for custom wiring or expansion.
Texas Instruments MSP430 specifications
| Power Consumption (RAM Retention) | 0.1µA |
|---|---|
| Power Consumption (RTC Mode) | <1 µA |
| Flash Power Consumption | <230 µA/MHz |
| RAM Power Consumption | <110 µA/MHz |
| CPU Speed Range | 8MHz to 25MHz |
| Flash Memory Range | 0.5KB to 256KB |
| RAM Range | 128B to 16KB |
| Pin Count Range | 14 to 113 |
| Package Options | 22 types |
| Instruction Set | 27 instructions |
| Wake-up Time | <6µs |
| Pin Leakage Current | <50 nA |
| LaunchPad Kit Price | $4.3 |
Source: Texas Instruments MSP430 Microcontroller Product Leaflet
All Texas Instruments MSP430 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the main advantage of the MSP430 microcontroller?
Its native ultra-low power (ULP) architecture is designed to significantly extend battery life.
From: Texas Instruments MSP430 Microcontroller Product Leaflet
What is the maximum CPU speed of the MSP430?
The CPU speed ranges from 8MHz to 25MHz.
From: Texas Instruments MSP430 Microcontroller Product Leaflet
What resistor value should be used for the RC sensor to ensure sufficient discharge time?
A high‑value resistor of about 6 MΩ is recommended, which limits the charging current to roughly 500 nA.
From: Texas Instruments MSP430 Capacitive Single‑Touch Sensor Design Guide
How much ROM and RAM does the example MSP430 touch‑sensor application consume?
The example uses 1950 bytes of ROM and 96 bytes of RAM.
From: Texas Instruments MSP430 Capacitive Single‑Touch Sensor Design Guide
